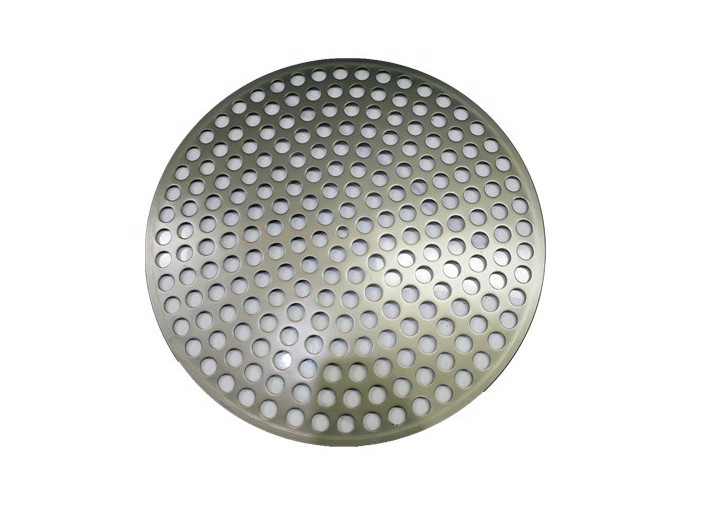

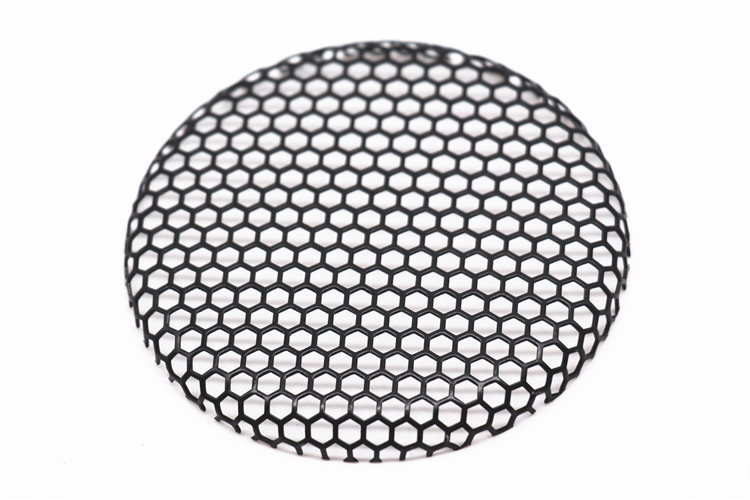

Stainless Steel 304 316 Customized Perforated Mesh Filter Tube For Water
Perforated mesh filter tube is a very wide role of industry and family water or liquid.Sometimes it is the support,the others inside or outside for more precise.Sometimes it is for primary filtration directly.The work surface is very smooth.It won't hook the other things in side or out side.So it is cleaned easily.This make it friendly with other materials to consist a better and precision filter,like hydraulic system filters.
Micro Perforated holes sheet
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
| 0.045'' | 1.14mm | 0.06 | 0.032'' | 0.81mm | 37.00% |
| 1/16'' | 1.59mm | 1/8'' | 0.032'',0.040'' | 0.81mm,1.02mm | 23.00% |
| 3/32'' | 2.38mm | 5/32'' | 0.040'',0.063'' | 1.02mm,1.60mm | 33.00% |
| 7/64'' | 2.78mm | 3/16'' | 0.32'' | 0.81mm | 29.00% |
| 1/8'' | 2.78mm | 3/16'' | 0.320'',0.040'',0.050'',0.063'',0.125'' | 0.81mm,1.02mm,1.27mm,1.60mm,3.17mm | 40.00% |
| 5/32'' | 3.97mm | 3/16'' | 0.320'',0.063'',0.090'' | 0.81mm,1.60mm,2.29mm | 63.00% |
| 3/16'' | 4.76mm | 1/4'' | 0.320'',0.040'',0.050'',0.063'' | 0.81mm,1.02mm,1.27mm,1.60mm | 50.00% |
| 3/16'' | 4.76mm | 3/8'' | 0.040'', | 1.02mm | 23.00% |
| 1/4'' | 6.35mm | 5/16'' | 0.063'' | 1.60mm | 58.00% |
| 1/4'' | 6.35mm | 3/8'' | 0.063'',0.125'' | 1.60mm,3.17mm | 40.00% |
| 1/2'' | 12.7mm | 11/16'' | 0.063'' | 1.60mm | 48.00% |
We supply for you:
Standard perforated mesh filter also the customized size if you need.
The hole is uniform and regular.
The Package and Delivery
|
|
