Make Professional Products, Do Sinecre Business.
5 Years
| Ask Lasest Price | |
| Brand Name : | STD Filter |
| Model Number : | STD WMF-007 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1000 pcs per day,customized time |
| Delivery Time : | 7 days or customized time |

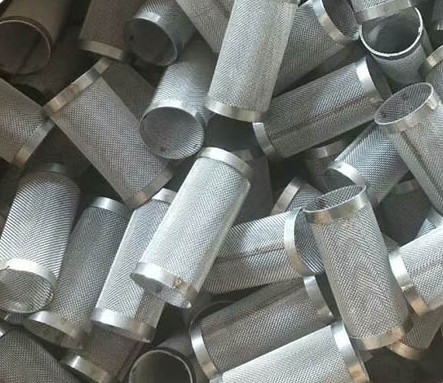

Woven Stainless Steel 304 316 Customized Wire Mesh Filter Cylinder For Filtration
The material of the Wire is stainless steel 304 or 316,316L.The stainless steel is very steady material,it can be used for food.Also it is high quality.And after woven,it can be make special shapes.like: bow shape,funnel shape,etc.
The Features
acid and alkali resistance,
high temperature resistance,
abrasion resistance,
not easy to damage,
filtering after cleaning,
can be used repeatedly
| stainless steel filter wire mesh specification | |||
mesh Inch | wire diameter mm | hole size inch | |
| 50*50 | 0.009 | 0.229 | 0.011 |
| 50*50 | 0.008 | 0.203 | 0.012 |
| 60*600 | 0.0075 | 0.191 | .0092 |
| 60*60 | 0.007 | 0.178 | 0.0097 |
| 70*70 | 0.0065 | 0.165 | 0.0078 |
| 80*80 | 0.0065 | 0.165 | 0.006 |
| 80*80 | 0.0055 | 0.14 | 0.007 |
| 90*90 | 0.005 | 0.127 | 0.0061 |
| 100*100 | 0.0045 | 0.114 | 0.0055 |
| 100*100 | 0.004 | 0.102 | 0.006 |
| 100*100 | 0.0035 | 0.089 | 0.0065 |
| 110*110 | 0.004 | 0.1016 | 0.0051 |
| 120*120 | 0.0037 | 0.094 | 0.0064 |
| 150*150 | 0.0026 | 0.066 | 0.0041 |
| 160*160 | 0.0025 | 0.0635 | 0.0038 |
| 180*180 | 0.0023 | 0.0584 | 0.0029 |
| 200*200 | 0.0021 | 0.0533 | 0.0029 |
| 250*250 | 0.0016 | 0.0406 | 0.0024 |
| 270*270 | 0.0016 | 0.0406 | 0.0021 |
| 300*300 | 0.0051 | 0.0381 | 0.0018 |
| 325*325 | 0.0014 | 0.0356 | 0.0017 |
| 400*400 | 0.001 | 0.0254 | 0.0015 |
| 500*500 | 0.001 | 0.0254 | 0.001 |
| 635*635 | 0.0008 | 0.0203 | 0.0008 |
The Way of Woven:Plain and twill

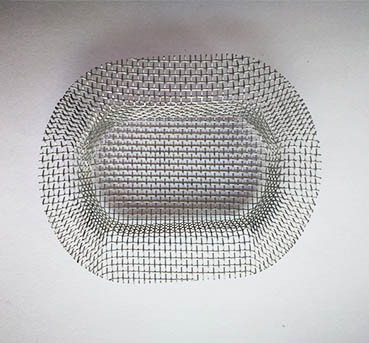

The diffreent shapes we can offer to you:
The Package and Delivery
|
|
