API Durable Sand Treatment Slot 0.25mm Wedge Screen Filter , Sand Filter Nozzle

Durable Stainless Steel Filter Water Treatment Sand Filter Water Nozzle

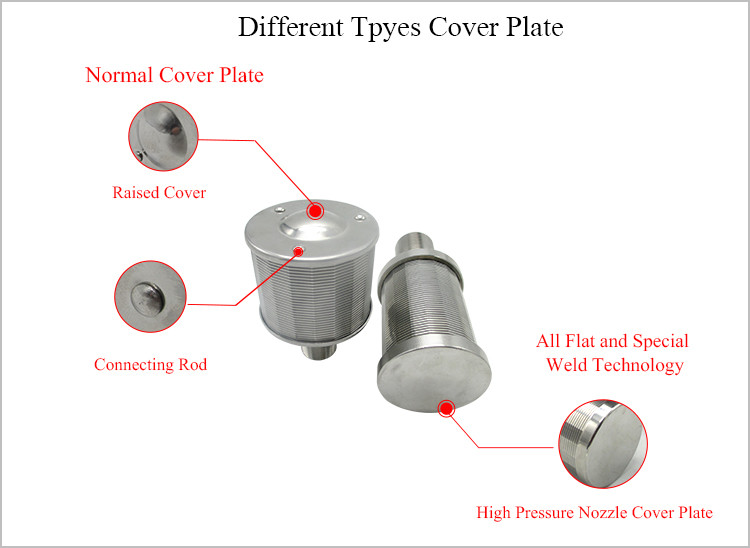

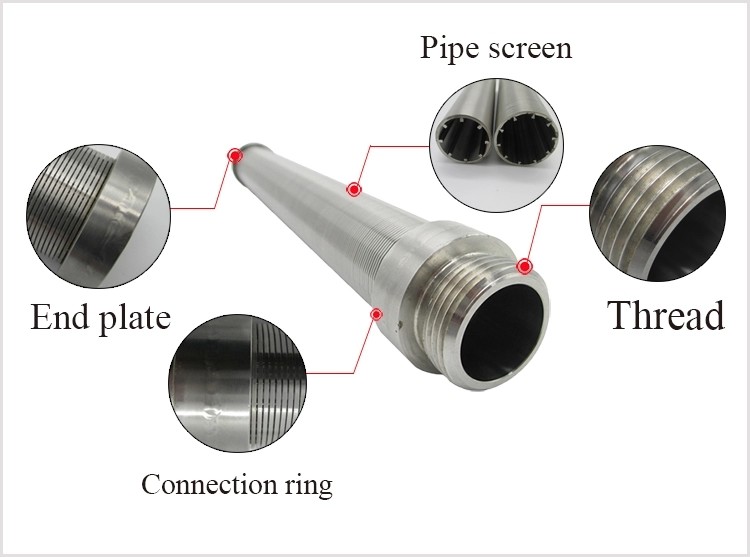

Wedge wire screen filter nozzle with high strength and durability is mainly made of high quality stainless steel,including single wedge wire nozzle and double wedge wire nozzle. And the single wedge wire nozzle has plate type and long hand type for choice.

With high filtering efficiency, corrosion resistance, temperature resistance and easy installation, wedge wire nozzle has a wide range of water treatment and other industrial applications for filtering and screening.

Besides, several wedge wire nozzles can be used together as collectors at the bottom of vessels.

Wedge wire nozzles are effective in a wide range of water treatment and other industrial applications for filtering and screening. Such as, under drain media retention elements, flow distributors in demineralizers, water softeners in pressure and gravity sand filters.

Feature:

They can be designed for filtration or treatment systems to permit the more effective use of the treatment media. Because of their non-clogging design strainer are effective in a wide range of water treatment and other industrial applications. they are economical, easily installed, and have several distinct design advantages

Type	Slot (mm)	Dimension					Flow Rating (M3/H)
		D(mm)	H(MM)	L(MM)	Thread	Fittings
STD-0.5	0.25	45	45	90/request	M,NPT, G, PT(BSPT),Z,BSP, request	SS Gasket, Rubber gasket, Nut, request	0.5
STD-1.0	0.25	53	45	90/request			1.0
STD-1.5	0.25	57	45	90/request			1.5
STD-2.0	0.25	57	55	100/request			2.0
STD-2.5	0.25	70	55	100/request			2.5
STD-3.0	0.25	70	70	120/request			3.0
Note	* All the above size are the normal size. Customized size is possible. * STD could help to design according to the application and requirement. * The nozzles customized range as below: 1. Slot range: 0.05-2mm 2. Dimension: Diameter, Screen Height, Length could produce according to actual requirement and application 3. Thread according to requirement
