| Brand Name : | STD Filter |
| Model Number : | STD WSF017 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days or customized time |

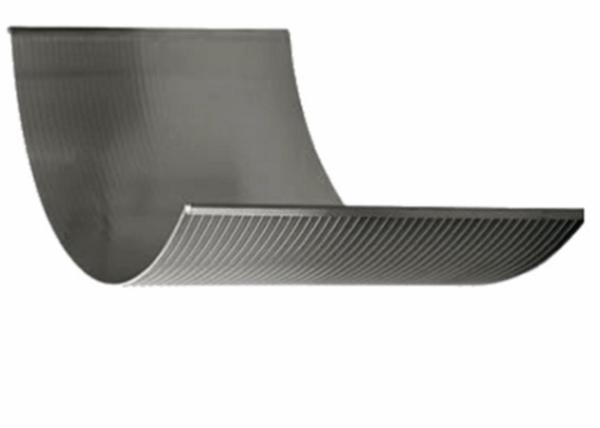

SUS 304 And 316 Silver Material Curves Wedge Screen Filter For Mine Sieve
Mine sieve is a kind of strictly request device.Because there is many stone and sand.When working,the stones or sand is heating and rubbing the sieve.It is very harm and damage the filter.It must be hard-wearing and high rigidity.
The wedge screen filter is a kind of V-shape wire twined on the rods and welded them together.The V-shape wire is thick,so it will be a long servic time.Besides,They are welded together,so they are blending together,being a very rigidity.
The wedge screen filter is customized curves.It is very suitable for the sieve,and the mine materials can sufficient contact with the filter to seperate the materials in different size.
| SIZE (INCH) | O.D (MM) | SLOT (INCH) | LENGTH (M) | COLLAPSE STRENGTH (PSI) | TENSILE WEIGHT (TON) | WRAP(thick*deep) (MM) | RODS (MM) |
| 4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8MM/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8MM/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8MM/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8MM/50 |
The Benifits of Wedge Screen Filter Pipe
1. A continuous port starting which significantly improves the readily available available area, therefore having a sufficient contacting.
2. A V-designed account wire which prevents blocking and makes certain an continuous movement.
3. A consistent and effective well development because of the continuous port opening up.
4. Step ladder-like wire welded monitors have got a solid framework and open region, and also accurate slot dimension.
5. Ladder-like wire welded screens hold the attributes of easy backwashing, last for very long, security and stability and also very low extensive charge.
Maximazing movement charges :
When considering screens of equivalent span, size and slot sizing, circulation rates through V-designed well displays can beThree occasions higher than bridge-port screens Nine occasions greater than slotted housing
Low blocking port :
Continuous-port well display screens have V-molded openings that narrowest in the external encounter and widen inwardly, as a result, extra-large particles are retained outside of the display and dust passing throughout the narrow outside the house opening can enter the screen.
Reduction in working expense :
Using a Continous-slot well screen, cost savings can be accomplished in expenses. Lower through-port velocities imply that stress falls are
reduced.
The advantage
Good in filtration and fluidity;
great strength
Good resistance to abrasion and corrosion
wear resistance
Application
You will find our wedge wire filter useful for your tasks in any of
the following areas:
Coal mining process
Dewatering
Trash
Classification
Waste water
Food processing
The Introductin of the products working ways
The show of details:
The package:
The Delivery:
