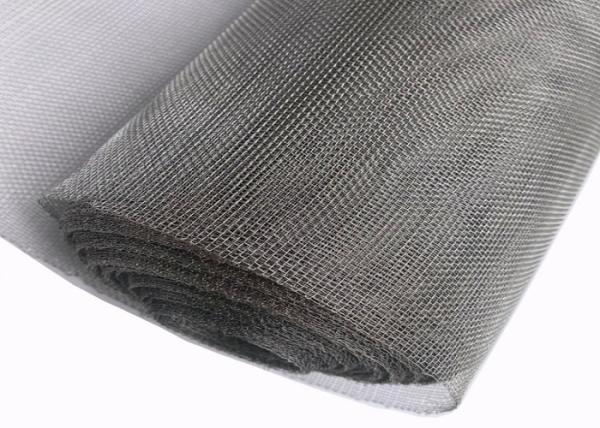

Carbon Black 1-400 Mush Resistance To Acid And Alkali Titanium Wire Mesh Screen For Filtration
The introduction
Titanium mesh is mainly used for acid, alkali environment conditions screening and filtration or gas, liquid filtration and other media separation. Titanium mesh can be used in high temperature resistant filter, shipbuilding, chemical filter, mechanical filter, electromagnetic shielding, seawater desalination filter, high temperature electric furnace heat treatment support, petroleum filter, food processing, pharmaceutical filter, and other industries.
Titanium mesh is a kind of rare metal mesh. Industrial pure titanium mesh: Of industrial pure titanium mesh is chemical pure titanium content of impurities, so its strength and hardness is high, its mechanical properties and chemical properties similar to stainless steel, compared with the strength of pure titanium, titanium alloy is better than that of austenitic stainless steel in terms of oxidation resistance, but poor heat resistance, TA1, TA2 and TA3 higher content of impurities, mechanical strength, hardness, in turn, strengthen, But the plasticity and toughness decrease successively. β-type titanium: β-type titanium alloy can be heat treatment strengthening, alloy strength is high, weldability, good pressure machinability, but the performance is not stable, and smelting process is complex.
Titanium mesh is mainly used for acid, alkali environment conditions screening and filtration or gas, liquid filtration and other media separation. There are three methods of plain weave, twill weave and dense weave. Because the drawing of titanium wire is more difficult, at present the domestic drawing of relatively mature titanium wire can be the smallest 0.05mm, titanium wire elongation is low, high strength, high elasticity, low flexibility. This greatly limits the production of high - mesh titanium mesh. Titanium mesh specifications 1 mesh -400 mesh.
| Item | Type | ||
| Material | Titanium Wire Dia.: 0.5mm-10.0mm Alloyed Ti | Black CP Ti Wire (ASTM B863) | Shipbuilding and seawater filtration, etc. |
| Polished CP Ti Wire (ASTM B863) | Making electrode and current collection grid, fine chemicals filtration | ||
| Medical Ti Wire (ASTM F136) | Making Medical Parts and equipment | ||
| Mesh | 1-100 mesh Aperture rate:10%-90% Size: 10mm-2000mm Width x Length | ||
| Processing | Plain Weave and Twill Weave | ||
| Properties | Acid and Alkali resistance, High strength High temperature resistance, and wear resistance | ||
| Application | Used in acid and alkali environment, as sieve in petroleum industry and chemical fiber industrial, pickling in electroplating industrial, food, medicine, machinery manufacturing and other industries | ||
The Advantage:
1.Low density and high tensile strength.
2.Excellent Corrosion resistance.
3.High temperature resistance.
4.Outstanding filtration performance.
5.Good thermal property.
6.Acid and alkali resistance.
7.Nontoxic.
The Details
The Package and Delivery
|
|
