| Brand Name : | STD Filter |
| Model Number : | STD WWF 012 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days or customized time |

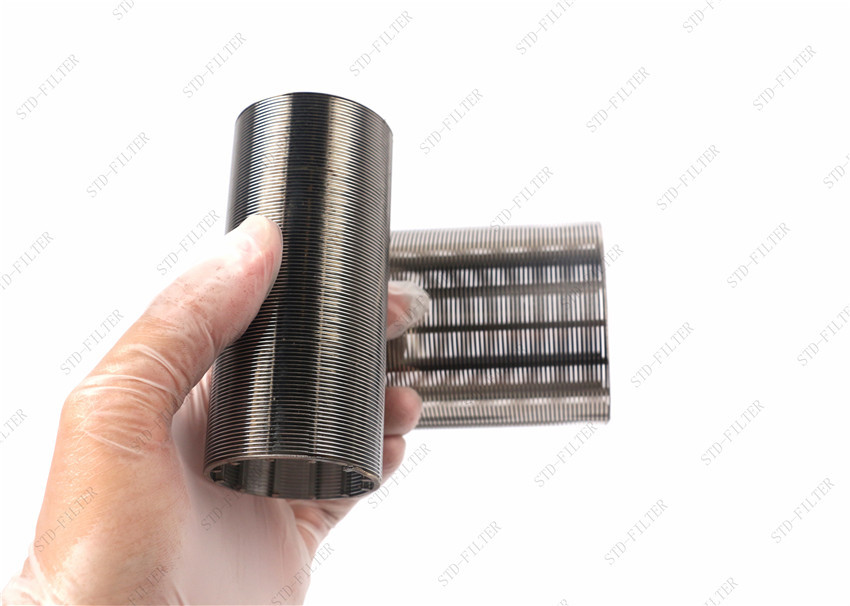

Stainless Steel 304 316 Wedge Wire Screen Filter For Corn Starch Arc Sieve
Materials:
The products we supply for you is Stainless steel .Beacuse of the steady chemical characteristic of Stainless steel,it is very safe for food.Therefore,it is very better to choose for food filtration sieve element.Also it be good strength and backwash.
| Nomial Diameter(in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) | Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) |
| 2-3/8” | 45 | 60.3 | 4 | 90 | |||||
| 2-7/8” | 58 | 73.0 | 4 | 90 | |||||
| 4-1/2” | 100 | 114.3 | 5 | 14 | 4-1/2” | 100 | 114.3 | 8 | 60 |
| 5-1/2” | 124 | 139.7 | 7 | 8 | 5-1/2” | 124 | 139.7 | 10 | 50 |
| 6-5/8” | 150 | 168.3 | 9 | 20 | 6-5/8” | 150 | 168.3 | 12 | 50 |
| 8-5/8” | 197 | 219.1 | 15 | 15 | 8-5/8” | 197 | 219.1 | 20 | 60 |
| 9-5/8” | 222 | 244.5 | 17 | 9 | 9-5/8” | 222 | 244.5 | 25 | 60 |
| 10-3/4” | 247 | 273.1 | 20 | 10 | 10-3/4” | 247 | 273.1 | 30 | 45 |
| 12-3/4” | 298 | 323.9 | 24 | 10 | 12-3/4” | 298 | 323.9 | 37 | 40 |
| 13-3/8” | 316 | 339.7 | 30 | 9 | |||||
| 16 | 378 | 406.4 | 34 | 9 | |||||
| 20 | 476 | 508.0 | 53 | 9 | |||||
| Applied for shallow well or general screen | Greater strength, larger filter area Applied for medium depth wells or deep wells | ||||||||
Characteristic:
1.Safety:The stainless steel is used for food and drinking water widely.
2.High Strength:Due to the structure of V shapes wire and the support rods,Both of them has a cross or angles with each,it is very strength for many work environment
3.Good Flat surface:Because the half-auto technology,the flat surface is besured.
4.Easy to Clean and Backwash:
Through a Continous-port well monitor, financial savings may be accomplished in working expenses. Reduced through-slot velocities suggest that strain drops are reduced.
5.No block port:
Steady-slot well monitors have V-designed availabilities that narrowest at the outer encounter and broaden inwardly, as a result, large debris are retained beyond the monitor and particles passing with the thin outside starting can enter the display.
