| Ask Lasest Price | |
| Brand Name : | STD Filter |
| Model Number : | STD WSF003 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days or customized time |

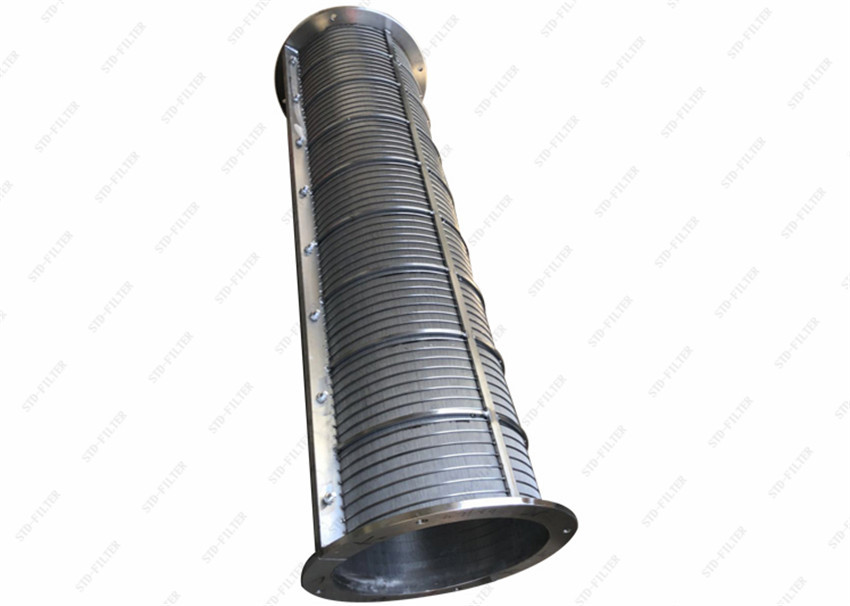

SUS 304 Silver Quality-Crafted And Fluidity Wedge Screen Filter Pipe For Mine
Wedge Screen Filter generally is a welded metal structure, mainly a great choice for filtering, splitting up and breakup and servicing volume success.
It offers doing work practical experience cord , normally V-styles since you may know, stainless.All of those are welded around the assistance rods. The distance at the top position functioning encounter between your V-designs cables is maintained very accurately, mainly because it sorts the dock whereby the filtrate moves by by. From your curved,the wedge cord filtration could possibly be stage,circular and flex curved after the sketches.Also, it is in reality categorised the sides or simply not.
| SIZE (INCH) | O.D (MM) | SLOT (INCH) | LENGTH (M) | COLLAPSE STRENGTH (PSI) | TENSILE WEIGHT (TON) | WRAP(thick*deep) (MM) | RODS (MM) |
| 4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8MM/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8MM/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8MM/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8MM/50 |
The way of woking
The Benifits of Wedge Screen Filter Pipe
1. A steady slot starting which significantly boosts the easily accessible open area, therefore supplying higher access to the normal water having region
2. A V-molded account cord which prevents stopping and assures an uninterrupted flow.
3. A consistent and successful well development due to frequent port starting.
4. Stage ladder-like wire welded screens use a strong formula and offered area, along with precise harbour factor.
5. Move ladder-like cable tv welded screens obtain the attributes of simple backwashing, go very far, safety and trustworthiness along with extremely low in depth fee.
The advantage
Good in filtration and fluidity;
great strength
Good resistance to abrasion and corrosion
wear resistance
Application
You will find our wedge wire filter useful for your tasks in any of
the following areas:
Construction
Coal mining process
Dewatering
Trash
Scalping
Sizing
Classification
Waste water
Food processing
The Introductin of the products working ways
The show of details:
The package:
The Delivery:
