| Brand Name : | STD Filter |
| Model Number : | STD WSF 004 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days or customized time |

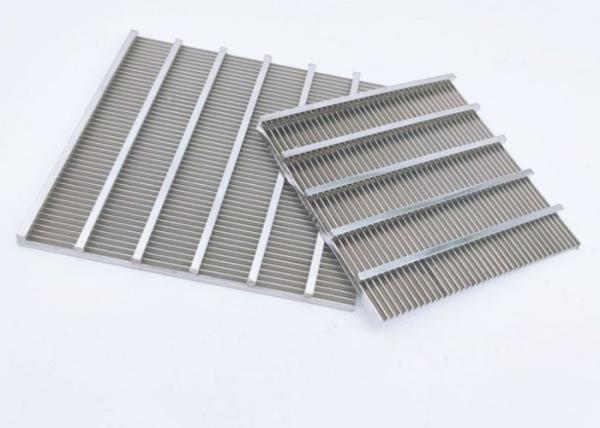

Stainless Steel Silver Customized 0.02 mm Wedge Screen Filter For Petrochemical & Refining
Materials:
The products is high precision.It can customized to 0.02mm if you need.The stainless steel is also a perfect material.It is high rigidity and asistance corrosion.It is suitable for the petrochemical and refining.
| Product Name | Stainless Steel Silver Customized 0.02 Mm Wedge Wire Filter For Petrochemical & Refining |
| Material | stainless steel |
| Color | silver white |
| Standard | DIN GB ISO API |
| Grade | SS201 , SS304 , SS304L , SS316 , SS316L |
| Brade | STD Filter |
| Thread | smooth, fine |
| Used | screening,filter |
| Slot size | 0.1-3mm, opening area up to 60% |
| length | 6m Length up to 6m |
| Diameter range | from 25 to 1300mm |
| End connection | flat and inclined face welding or threaded |
| Note | can be designed according to requirements |
Characteristic:

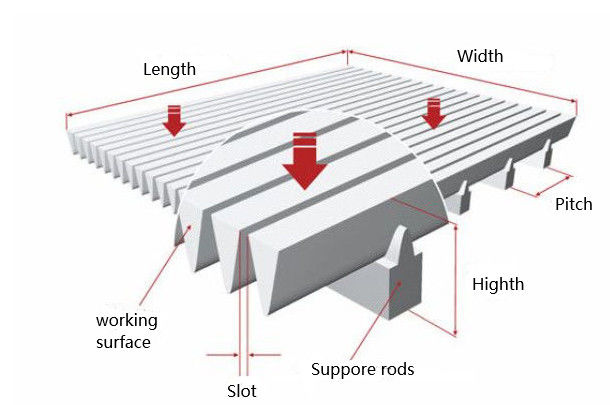

it has two parts:the wedge wire consisting the surface continuous,which being welded on the another part, the support rods.So it has the following characteristic:
Easy leakage, wear resistance, corrosion resistance. The mesh cross
section is a trapezoid, narrow width of the gap, have a wire made
of cold rolled stainless steel, this wire is support rods. The
screen is uniform, the welding is stable, high hole rate, long
service life, high strength, stiffness and bearing capacity of
rigid, screening filter device can be made into various shapes.
Advantage
So smooth that it easy clean and backwash.high rigidity can work a long time and reducing the mantenance and replacment.All the surface is work surface,it has a high work efficiency.
Application:
1.Petrochemical & Refining
2.Industry filtration
3.koi pond
4.Drinking water pre-filter
5.Other liquid and solid seperation areas.
The details:
Packages
The package is standard export package or we can negotiate
