| Brand Name : | STD Filter |
| Model Number : | STD WWF 007 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days or customized time |
Stainless Steel 316 And 304 High Strength And Good Surface Material
Curved Wedge Wire Filter
Brief Introduction
Wedge wire is a welded metal structure, primarily useful for
filtering, divorce and maintenance mass media.It contains work surface user profiles, typically V-molded, that
are amount of resistance welded onto support user profiles. The
distance involving the surface area user profiles is operated very
accurately, as it forms the port whereby the filtrate passes. From
the curved,the wedge wire filter can be flat,round and bend curved
following your drowings.
| Name | wedge wire screen |
| Material | stainless steel(304,316) |
| Wedge wire | Width(mm): 1.5,1.8,2.3,3.0,3.3,3.7,1.0,4.5 Height:(mm):1.5,2.2,2.5,2.7,3.0,3.6,4.0,4.3,4.5,4.7,5.6,6.3,7.0 |
| Support rod | Width(mm): 1.5,2.0,2.3,2.7,3.0,3.3,3.7,4.0,4.5 Height(mm): 1.5,2.2,2.7,3.0,3.6,4.0,4.5,4.7,5.5,5.6,6.3 Round rod: 2.5-6.0mm |
| Thickness | usually 1mm,1.2mm,1.5mm,2.0mm etc |
| Length | 300mm,500mm customized |
| Width | 30mm,35mm,50mm,60mm,customized |
| Openging rate | 45%,60%,85% etc customized |
| SurfaceTreatm | Electric galvanized, Hot dipped galvanized, oxidation treatment etc |
| Usage | screening,decoration, sifting, filtration, drying, cooling, cleaning |
| Delivery Detail | 7-15 days after receiving the 30% deposit or as required |
The Usage accasions:
Civil aggregate
CIL process
Dewatering
Trash
Scalping
Sizing
Classification
Waste water
Food processing.
Wires and Rods Information
The most common wire
The most common support rod
The Benifits of V-shape Wedge Wire Filter
1. A continuous slot opening up which significantly improves the
readily available open up region, as a result delivering higher
accessibility water displaying region
2. A V-formed user profile cable which eliminates blocking and
guarantees an continuous movement.
3. A standard and successful well development because of the
constant port starting.
4. Ladder-like cable welded monitors possess a powerful structure
and high available place, as well as exact slot aspect.
5. Step ladder-like cable welded monitors possess the options that
come with easy back laundry, last, safety and trustworthiness along
with very low comprehensive price.
Aadvantage
Maximazing movement costs :
When thinking about screens of identical duration, diameter and
slot dimension, flow rates through V-designed well monitors can
beThree times greater than bridge-port screens.Nine instances
higher than slotted casing
No blocking port :
steady slot well shows have V-formed availabilities that narrowest
with the exterior encounter and widen inwardly, therefore, more
than size particles are retained beyond the display screen and
debris completing with the slim outside launching can enter in the
screen.
Lowering of operating charge :
Simply by using a Continous-slot well monitor, savings is possible
in moving charges. Reduced through-slot velocities suggest that
tension drops are decreased,.
Therefore :Drawdowns are decreased, Much less power is required for working,
Stream costs are greater, Significantly less beach sand in the
water minimizes use around the pumps.
The diagram demonstrates why welded wedge cable factors are rigid
and robust and thereby keeps extremely dependable port launching on
a regular basis.
Simple options that come with Welded wedge wire elements / items :
• They can be non-blocking
• Personal-undefinedbacked and firm
• Lengthy lifestyle
• Dependable and steady purification ranking
• All metallic construction (non-metallic also feasible like PP)
• An easy task to thoroughly clean smooth filtering area

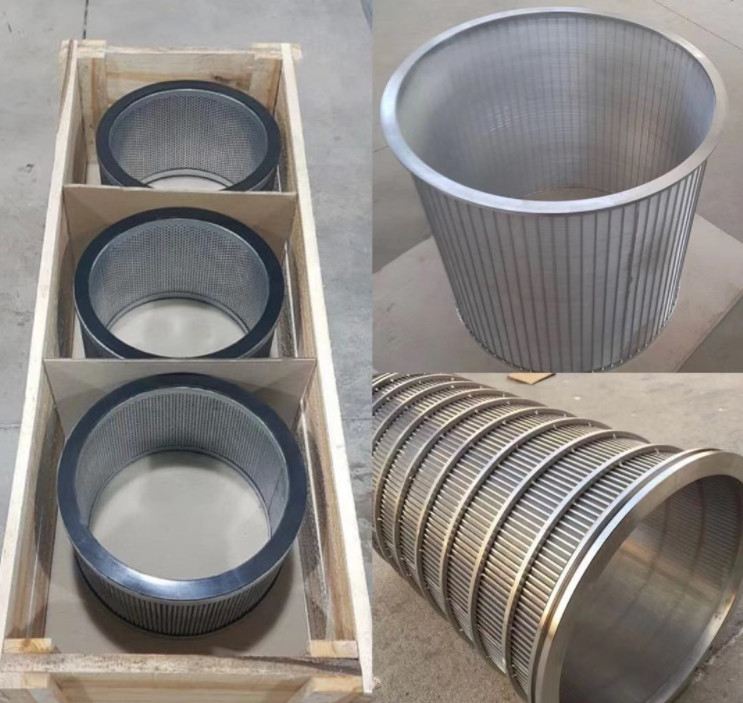

Package and Delievery:
The package is standard export package,The details or some requires
we can negotiate.
The Delivery
The delivery is negotiated.The huge container may be by sea.
|
|
