| Brand Name : | STD Filter |
| Model Number : | STD WWS 02 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days or customized time |

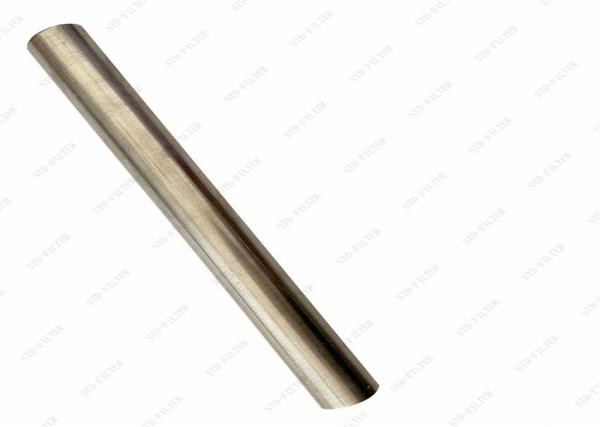

SUS316L Oil And Water Well V-Shape Wedge Slot Wire Filter
Stainless Steel wedge Slot wire filter,or Wedge Cable Fine mesh, for oil and water well filtration is really a mechanical personal-cleansing gadget that was designed to satisfy the expanding require and interest in a competent and inexpensive way of eliminating stopped solids from mixed liquid streams. The continuous and self-washing effect from the rotating monitors assists you to use increased movement capacities as opposed to those of any other type of screen thus leading to significant savings when it comes to both purchase and servicing.
Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) | Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) |
2-3/8” | 45 | 60.3 | 4 | 90 | |||||
2-7/8” | 58 | 73.0 | 4 | 90 | |||||
4-1/2” | 100 | 114.3 | 5 | 14 | 4-1/2” | 100 | 114.3 | 8 | 60 |
5-1/2” | 124 | 139.7 | 7 | 8 | 5-1/2” | 124 | 139.7 | 10 | 50 |
6-5/8” | 150 | 168.3 | 9 | 20 | 6-5/8” | 150 | 168.3 | 12 | 50 |
8-5/8” | 197 | 219.1 | 15 | 15 | 8-5/8” | 197 | 219.1 | 20 | 60 |
9-5/8” | 222 | 244.5 | 17 | 9 | 9-5/8” | 222 | 244.5 | 25 | 60 |
10-3/4” | 247 | 273.1 | 20 | 10 | 10-3/4” | 247 | 273.1 | 30 | 45 |
12-3/4” | 298 | 323.9 | 24 | 10 | 12-3/4” | 298 | 323.9 | 37 | 40 |
13-3/8” | 316 | 339.7 | 30 | 9 | |||||
16 | 378 | 406.4 | 34 | 9 | |||||
20 | 476 | 508.0 | 53 | 9 | |||||
Applied for shallow well or general screen | Greater strength, larger filter area Applied for medium depth wells or deep wells | ||||||||
The Benifits of V-shape Wedge Slot Wire Filter
1. A steady port starting which significantly boosts the available open area, thus delivering higher access to the drinking water displaying area
2. A V-molded account wire which avoids clogging and makes certain an continuous stream.
3. A standard and successful well development due to constant slot opening up.
4. Step ladder-like wire welded screens have a powerful structure and available region, as well as exact slot dimension.
5. Ladder-like wire welded display screens hold the options that come with effortless backwashing, last for very long, security and reliability as well as low complete cost.
Non clogging port :
Ongoing-undefinedport well monitors have V-designed openings that narrowest with the external face and expand inwardly, therefore, oversized contaminants are retained
away from display screen and debris moving with the filter outside starting can enter into the display.
Decline in working charge :
By using a Continous-slot well display, cost savings can be accomplished in moving costs. Reduce through-slot velocities mean that stress declines are lessened,for that reason :Drawdowns are decreased, Significantly less power is required for working, Stream charges are increased, Significantly less sand in water reduces put on around the pumps.
Maximazing circulation costs :
When it comes to displays of the same duration, diameter and port dimension, movement costs through V-formed well display screens can
Application
1.water well and oil well
2.energying and mining
3. Koi Pond
4.paper & pulp etc
