Safe Stainless Steel Customized Slot And Shape Wedge Wire Lauter Tun Screen For Brewery And Beverages
Introduction
In brewing technology, the lauter tun is where the wort is separated from the remains by wedge wire or slot milled screens. Wedge wire screen strainers provide a larger open area and therefore a higher throughput. The false bottoms have slot widths with very low tolerances for ideal filtration results.
Lauter tun is essential products from the dark beer producing method, which is used to filtering the crushed grain in the wort. The wedge wire base screen may be the filtering fabric and assisting fabric in the lauter tun.

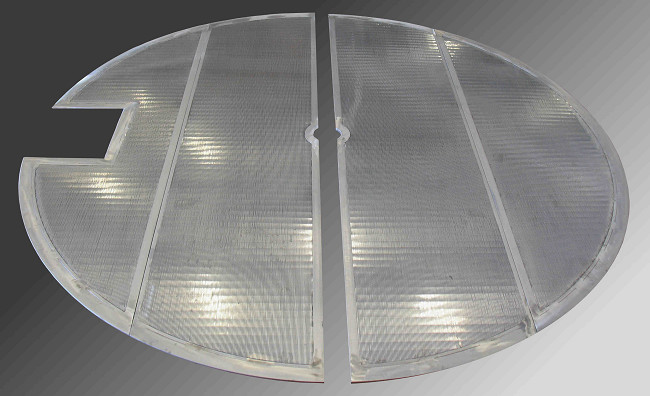

The wedge wire false bottom screen is established as being the best design to permit the lautering process to happen properly and proficiently. The screen is manufactured from “V”-shaped stainless sections, set across help beams at normal intervals — typically with openings of .028 in . or .030 ins. Though other port launching measurements can be used according to particular demands.
The lauter tun wedge wire false bottom screen support the mash bed and confine the grain on the bed.As the same time,allow the liquid though down and seperate the liquid and liquid.
The advantage of wedge wire false bottom screen to others filter:
1.Wedge wire offers a wide opened area to forbid to block.
2.High precision to make the brewing and beverage better
3.Less cost for maintance and operation
4.More efficient
5.customized.even segmented is allowed.
| Wedge wire | width(mm):1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Support rod | Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
| Slot size | 0.10 0.15 0.20 0.25 0.30.....6.00mm also achieved upon request. |
| Material | Stainless steel(304,316,316L etc.) |
| Length | up to 6m |
| Diameter | from 26mm to 1200mm |
| End connection | Plain beveled ends, flanged or threaded couplings |
The most common wire
The most common support rod
The details:
The Package And the delivery
|
|
