| Brand Name : | STD Filter |
| Model Number : | STD WWF 022 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day |
| Delivery Time : | 7 days or customized time |

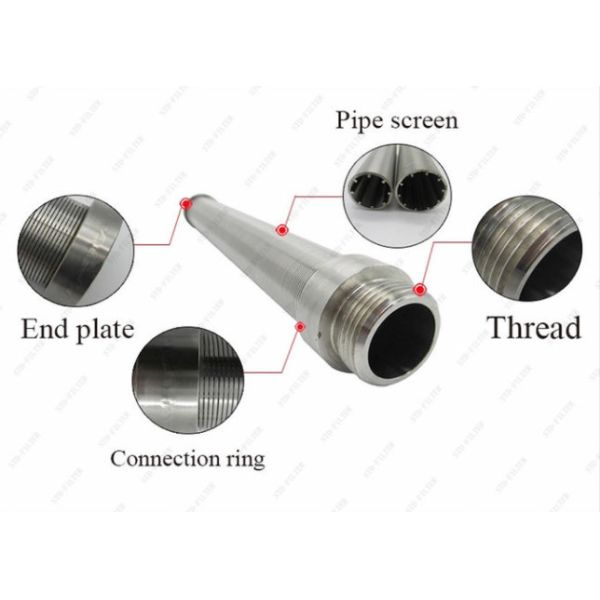

Stainless Steel 304 316 Customized Shapes Wedge Wire Heater Laterals For Water Equipment
Materials:

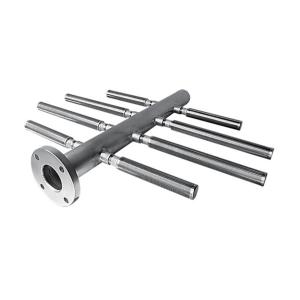

Available as both Header Lateral and Hub Lateral assemblies, Federal Screen wedge wire screen laterals and pipe based laterals can be connected to distributor headers and spider hubs by standard NPT thread, fabricated flange, ANSI connections, and can be offered as fully welded assemblies.
Category: Header laterals
Material: Stainless steel 304, 316, 316L, galvanized steel, etc.
Properties: Wedge wire screen
Application: Filtration
Specifications:
Header pipe diameters: from 50mm up to 600mm
Slot sizes: 0.1mm up to 15mm
Length: 50mm up to 6000mm
Connection ways: Flange type or screwed threaded type
| Material | SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207,Duplex, Hastelloy, etc | ||
| Normal Lateral Tube QTY (PCS) | 4, 6, 8, 12,16, etc. According to request, actual flow rating, and application. | ||
| Lateral OD Range (mm) | 25 to 80mm, customized | ||
| Normal Hub (mm) | 108, 133, 219, Customized | ||
| Hub and lateral connector types | Thread, Flange | ||
| Diameter Range(mm) | According to the tank diameter. (Usually 200mm shorter than tank diameter) | ||
| Slot Range(mm) | Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.Slot according to request. | ||
| Wedge Wire(mm) | 1x2 | 1.5x2 | 2x3 |
| Support Rod (mm) | 1.5x2.52x3 | 1.8x2.52x3 | 2x32x4 |
| Note | Customized According To Requirement | ||
Characteristic:
1. Safety for food and drinking water.
2.Chemical stability
3.Resistance to corrosion and abrasion
4High strength and rigidity
5.Long work time
6.Easy to be washed and cleaned
7.Save time and money.
8.The number of branch is customized.
Packages:
The delivery:
Please Meet us on The http://www.wedgefilter.com,we will give you sincere sevice and an unbeatable price.
|
|
