| Brand Name : | STD Filter |
| Model Number : | STD WWS 005 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days or customized time |
Stainless Steel Environmental Protection customized shapes Wedge Wire Strainer
Materials:
As the Environmental protection is a complecated environment.There maybe need for separating the garbages from water,sand or land.Or the leaves from sand to be processed in to manure.So you will need a high resistance abration and corrosion. The stainless steel is best choice for those.The products we supplyed is Stainless steel 304 or 316 ,as your required.The chmical character of the stainless steel meet your needs.
| Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) | Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) |
| 2-3/8” | 45 | 60.3 | 4 | 90 | |||||
| 2-7/8” | 58 | 73.0 | 4 | 90 | |||||
| 4-1/2” | 100 | 114.3 | 5 | 14 | 4-1/2” | 100 | 114.3 | 8 | 60 |
| 5-1/2” | 124 | 139.7 | 7 | 8 | 5-1/2” | 124 | 139.7 | 10 | 50 |
| 6-5/8” | 150 | 168.3 | 9 | 20 | 6-5/8” | 150 | 168.3 | 12 | 50 |
| 8-5/8” | 197 | 219.1 | 15 | 15 | 8-5/8” | 197 | 219.1 | 20 | 60 |
| 9-5/8” | 222 | 244.5 | 17 | 9 | 9-5/8” | 222 | 244.5 | 25 | 60 |
| 10-3/4” | 247 | 273.1 | 20 | 10 | 10-3/4” | 247 | 273.1 | 30 | 45 |
| 12-3/4” | 298 | 323.9 | 24 | 10 | 12-3/4” | 298 | 323.9 | 37 | 40 |
| 13-3/8” | 316 | 339.7 | 30 | 9 | |||||
| 16 | 378 | 406.4 | 34 | 9 | |||||
| 20 | 476 | 508.0 | 53 | 9 | |||||
| Applied for shallow well or general screen | Greater strength, larger filter area Applied for medium depth wells or deep wells | ||||||||
Characteristic:
1. A steady slot opening up which significantly improves the available open up location, therefore offering greater accessibility to displaying area
2. A V-designed information wire which prevents clogging and assures an continuous circulation.
3. A uniform and productive well development due to the ongoing port opening.
4. Ladder-like wire welded screens use a powerful composition and wide open area, and also accurate slot dimension.
5. Ladder-like wire welded screens get the features of effortless backwashing, go very far, safety and stability along with very low complete price.
Aadvantage
Maximazing stream prices :
When considering displays of the same span, size and slot dimension, stream costs through V-shaped well monitors can beThree times beyond fill-slot screens Nine periods more than slotted casing
Non blocking port :
Continuous-port well displays have V-formed openings that narrowest in the external experience and widen inwardly, thus, outsized contaminants are retained
away from display screen and particles passing throughout the filter outdoors launching can enter in the display screen.
Reduction in operating charge :
Using a Continous-slot well screen, savings is possible in moving charges. Reduce through-slot velocities imply that strain declines are
reduced.
Consequently :Drawdowns are lowered, Significantly less energy is needed for pumping, Movement prices are elevated, Much less yellow sand within the water decreases put on about the pumping systems.
Application:
1.Environmental protection
2.water/liquid filtration
3.air/liquid filtration
4.Drinking water pre-filter
5.mining

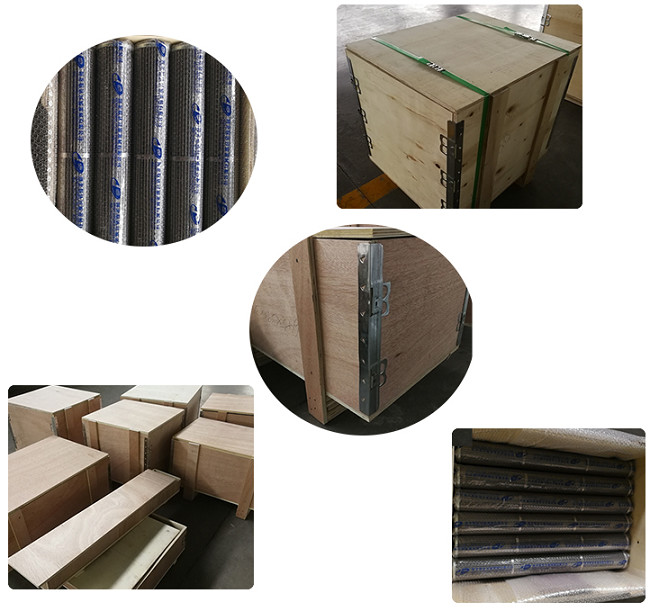

Package and Delivery:
Package is professional export and wooden box.If you have any special demands.we can negotiate.
The delivery is door to door,or we can negotiate.
