| Brand Name : | STD Filter |
| Model Number : | STD WWS 119 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days or customized time |
Stainless Steel 304 316 Customized Size and Shapes Wedge Wire Strainer For Water Intake
Materials:
We,STD Filter,offer many various options,such as T-intaker,half intaker, drum screen filter and panels.All of them are stainless steel 304 and 316or as your required.We produce multiple sizes and configuration,including half intaker for shallow water condition.
| Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) | Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) |
| 2-3/8” | 45 | 60.3 | 4 | 90 | |||||
| 2-7/8” | 58 | 73.0 | 4 | 90 | |||||
| 4-1/2” | 100 | 114.3 | 5 | 14 | 4-1/2” | 100 | 114.3 | 8 | 60 |
| 5-1/2” | 124 | 139.7 | 7 | 8 | 5-1/2” | 124 | 139.7 | 10 | 50 |
| 6-5/8” | 150 | 168.3 | 9 | 20 | 6-5/8” | 150 | 168.3 | 12 | 50 |
| 8-5/8” | 197 | 219.1 | 15 | 15 | 8-5/8” | 197 | 219.1 | 20 | 60 |
| 9-5/8” | 222 | 244.5 | 17 | 9 | 9-5/8” | 222 | 244.5 | 25 | 60 |
| 10-3/4” | 247 | 273.1 | 20 | 10 | 10-3/4” | 247 | 273.1 | 30 | 45 |
| 12-3/4” | 298 | 323.9 | 24 | 10 | 12-3/4” | 298 | 323.9 | 37 | 40 |
| 13-3/8” | 316 | 339.7 | 30 | 9 | |||||
| 16 | 378 | 406.4 | 34 | 9 | |||||
| 20 | 476 | 508.0 | 53 | 9 | |||||
| Applied for shallow well or general screen | Greater strength, larger filter area Applied for medium depth wells or deep wells | ||||||||
Product include:
Flat Panels
Half-barrel intaker

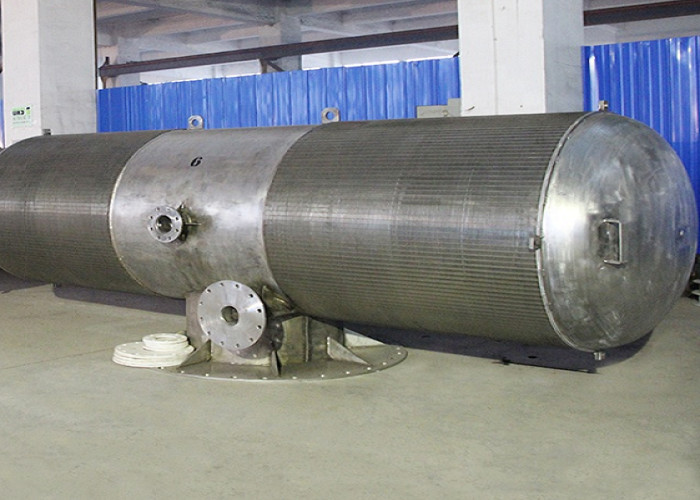

T-intaker screen/strainer
Drum screen/strainer
Advantage
Passive intake,no moving parts
Reducing operation cost
Minimum clogging to reduce the pump power
Maximum water flow
Muitiple types accomendate deep to shallow depths
Resistance to corrosion and abrasion
Other Applications:
1.Environmental protection
2.water/liquid filtration
3.air/liquid filtration
4.Drinking water pre-filter
5.mining
The show of the details:
Package and Delivery:
Package is professional export and wooden box.If you have any special demands.we can negotiate.
The delivery is door to door,or we can negotiate.
