| Brand Name : | STD |
| Model Number : | STD-WMF 022 |
| Certification : | API, ISO, CE, QMS, IAF, IADC |
| Price : | To be negotiated |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 50000 Square Meter/Square Meters Per Month |
| Delivery Time : | 5-8word days |

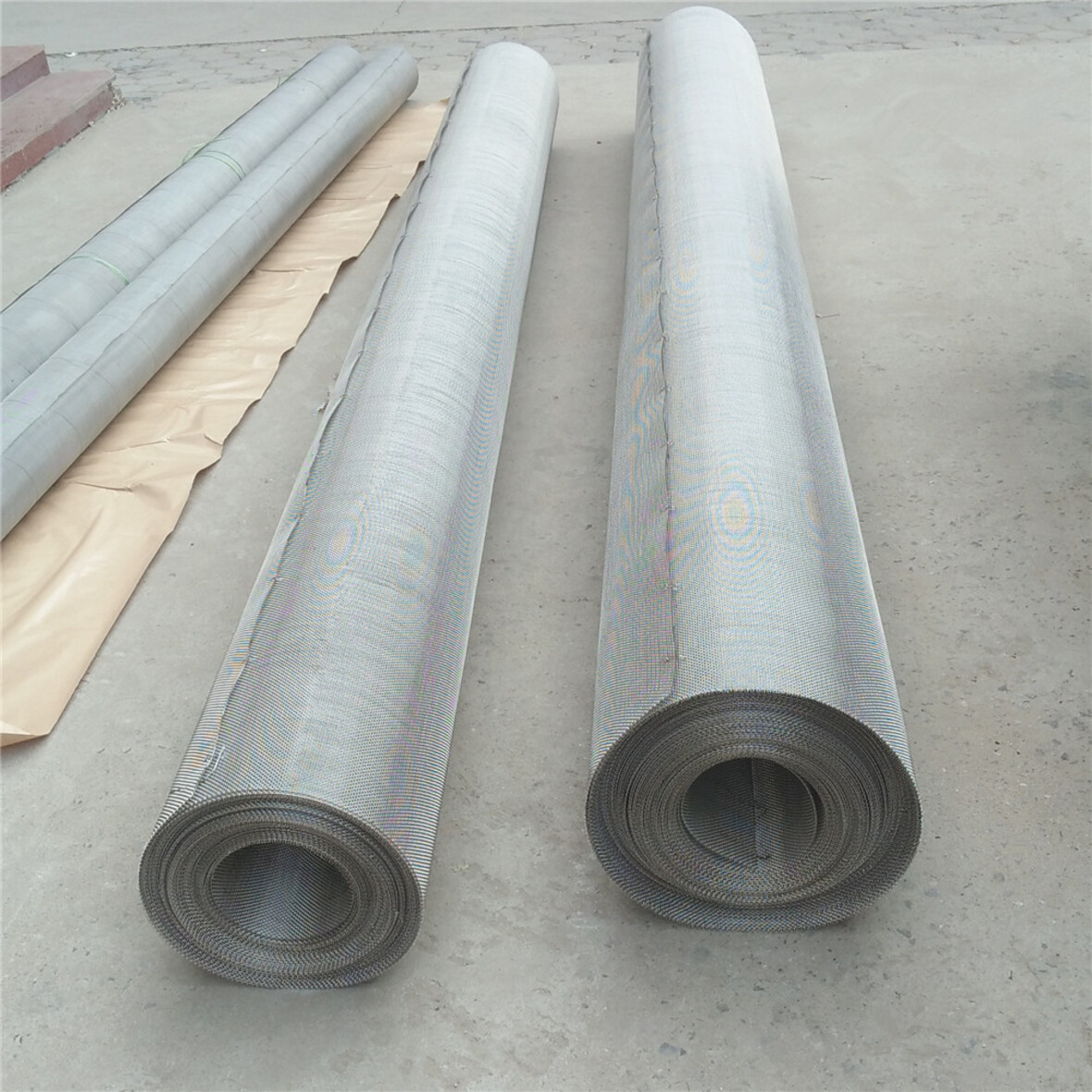

Corrosion Resistant 304 316L Stainless Steel Sea Water Filter Mesh Filter Material
Stainless Steel Sea Water Filter Mesh Filter Material is primarily created from Made of stainless steel wire harness by weaving or welding, along with the shape is material or grid.
Other manufacturing methods include punching and expanding with steel plates.
Because the material contains a lot of chromium and nickel, it has good corrosion resistance, and most of our materials are mainly 304 stainless wire and 316 stainless wire.
Material:
201,302,304,304L,316,316L,321 and 430 etc
Wire diameter:
0.025mm-1.800mm
Mesh size:
2mesh-2800mesh(0.02~10.9mm)
Weaving method:
Plain weave, Plain dutch weave, Twill weave, Dutch twilled weave, Reversed Dutch Weave
Roll width:
0.914m, 1.0m, 1.22m, 1.5m, 1.8m, 2.0m, any width available at request.
Roll length:
30m or 50m, any length available at request.
Characteristics:
Wear-resisting, Heat-resisting, Acid-resisting, Corrosion-resisting, Tear-resisting
Usage:
Mainly used for Separation and Flitration, extensively used in petroleum, chemical industry, food industry, pharmaceutical industry, enviroment protection, mine, airspace, paper-making, electronic, metallurgy etc.
Stainless steel wire filter mesh specifications | |||
Mesh | Wire Dia. (MM) | Normal Opening(μm) | Material (AISI) |
80mesh x 700mesh | 0.11x 0.08 | 30 | 304 , 316, 316L |
165mesh x 800mesh | 0.07 x 0.05 | 20 | 304 , 316, 316L |
165mesh x 1400mesh | 0.063 x 0.04 | 15 | 304 , 316, 316L |
200mesh x 600mesh | 0.05 x 0.032 | 10 | 304 , 316, 316L |
200mesh x 1400mesh | 0.05 x 0.032 | 10 | 304 , 316, 316L |
250mesh x 1600mesh | 0.05 x 0.032 | 8 | 304 , 316, 316L |
280mesh x 2200mesh | 0.05 x 0.032 | 7 | 304 , 316, 316L |
300mesh x 2100mesh | 0.036 x 0.025 | 6 | 316L |
325mesh x 2300mesh | 0.035 x 0.025 | 4 | 316L |
400mesh x 2800mesh | 0.030 x 0.018 | 3 | 316L |
