| Brand Name : | STD Filter |
| Model Number : | STD NWM-005 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days |

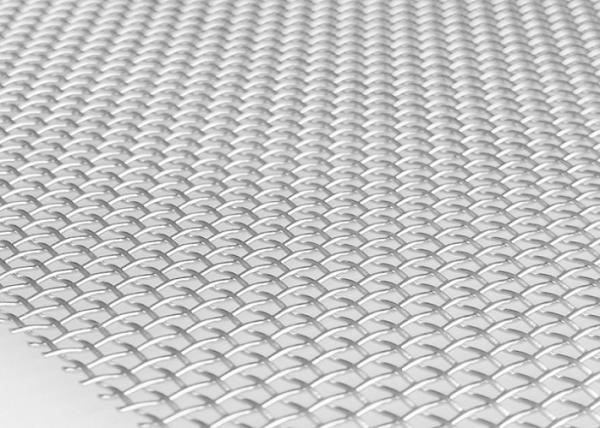

Plain Weave Nickel Allay 201 Wire Mesh Screen Resistance Aicd And Alkali For Industry
The introduction
Nickel Wire Mesh is mainly used in acid, alkali setting conditions screening and break up with petrol, liquid purification, and other press. The nickel web weaving ordinary weave, twilled weave, ordinary Dutch weave, twilled Dutch weave, reverse Dutch weave five types of approaches. The features of your nickel internet 1-330 mesh.
Ordinary nickel web: is considered the most frequent means of weaving, the main quality is the density of warp and weft wire size is identical.
Pure nickel rectangular wire fine mesh: Nickel sq . cable mesh is proper for the petrol, chemical, chemical fiber, silicone, tire production, metallurgy, treatments, food items and other market sectors, nickel silk into different features fine mesh, cloth, with very good acid and alkali opposition, high heat tolerant efficiency, etc.
| Mesh count | Wire diameter(mm) | Aperture(mm) | Max width(m) |
| 10 | 0.60 | 1.94 | 1.60 |
| 20 | 0.40 | 0.87 | 1.60 |
| 30 | 0.30 | 0.55 | 1.60 |
| 40 | 0.23 | 0.40 | 1.60 |
| 50 | 0.20 | 0.31 | 1.60 |
| 60 | 0.15 | 0.27 | 1.60 |
| 70 | 0.12 | 0.24 | 1.60 |
| 80 | 0.13 | 0.19 | 1.60 |
| 90 | 0.12 | 0.16 | 1.60 |
| 100 | 0.10 | 0.15 | 1.60 |
| 120 | 0.09 | 0.12 | 1.60 |
| 150 | 0.063 | 0.11 | 1.60 |
| 180 | 0.053 | 0.01 | 1.60 |
| 200 | 0.053 | 0.07 | 1.60 |
| 250 | 0.040 | 0.063 | 1.60 |
| 300 | 0.040 | 0.044 | 1.60 |
The Advantage:
Corrosion-resistant
Resistance to acid and alkali.
Soft but great strength.
high temperature resistant
The Other Application
Nickel woven wire mesh is widely used as the filtration material in the mining, oil, chemical, food, pharmaceutical, machine and other fields like electronics and battery production.Many acid and alkali environment and high temperature area.Also military industrial chemical machinery electricity desalination medical equipment and other fields has important position and role in national economic development.
The Details
The Package and Delivery
|
|
