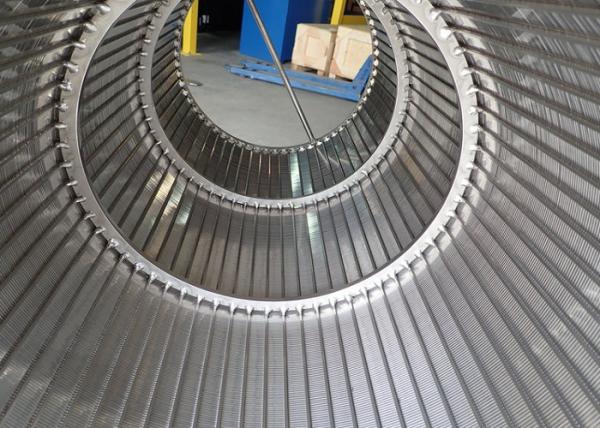

High Efficient Stainless Steel Slot 0.5mm Johnson Screens Resin Traps
Resin traps, also named as media traps, are designed to install on either existing and new build strainer bodies to capture the media and resins from loss and prevent them from traveling downstream.
The resin trap screen is normally with a flange on the head for easy installation to the equipment. The resin trap screen has a continuous and uniform slots to have a whole work face. It can be designed as the work direction flow in to out(FITO)or flow out to in(FOTI). The slot sizes are enough small to capture the tiny particle resins.
The resin traps are commonly made of stainless steel in order to avoid problems, such as rust corrosion.
Resin trap is a simple, protective sieving device to ensure ion exchange resin or other filtration media does not leave the water treatment equipment and travel downstream where it doesn't belong. Wedge wire screens (Vee wire screens) are installed near the outlet of the water system line and protected by mostly stainless steel housing or plastic housing.
When the resin or media passes by, it can be intercepted and captured by the wedge wire filter screens. At the same time, the captured resin can be discharged out of the system by flushing automatically through the differential pressure between front and rear.
Since the slots in the wedge wire are low to 20 microns and up to 3000 microns to suit different filtration fineness requirements.
| Popular Specifications of Wedge Wire Screens for Resin Traps | ||||||
| Material | SS 304, SS 304L, SS 316, SS 316L, SS 321, Duplex, Hastelloy, etc. | |||||
| O.D. | 25–2000 mm | |||||
| I.D. | 19–1987 mm | |||||
| Length | up to 6 m | |||||
| Slot size | 20 micron to 3000 micron (tolerance: ± 5 micron) | |||||
| Wedge Wire (mm) | 0.5 × 1.5 | 0.75 × 1.5 | 1 × 2 | 1.5 × 2 | 2 × 3 | 2 × 4 |
| Support Rod (mm) | 1.5 × 2.5 2 × 3 | 1.5 × 2.5 2 × 3 | 1.5 × 2.5 2 × 3 | 1.8 × 2.5 2 × 3 | 3 × 5 | 3 × 5 |
| Connection type | Commonly is flange, some are threads | |||||
| End type | Closed plate | |||||
| Customization | Special slot sizes and configurations can be customized as your request. | |||||
Benefits of our resin traps include:
The profile:
The diagram demonstrates why welded wedge cable factors are rigid
and robust and thereby keeps extremely dependable port launching on
a regular basis.
The package:
The delivery
So we will be the best of your choice to the wedge wire filter
manufacturer. For all your specifications and other information
about welded wedge cable monitors please mail us today at
