| Brand Name : | STD Filter |
| Model Number : | STD WWFB-012 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days or customized time |

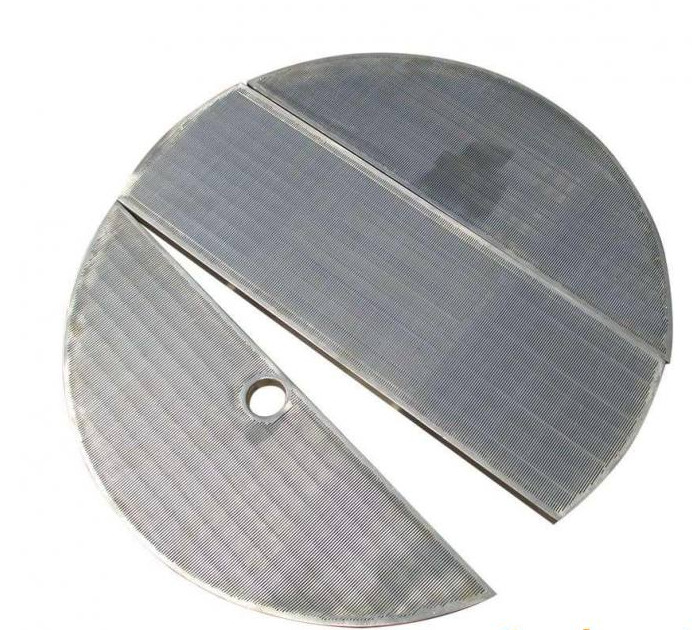

Food Grade 0.5mm Slot Dia 1.5m Multiple Sections Wedge Wire Support Grids
Introduction
Screen Support grids are designed to provide sufficient strength to
support catalytic beds under normal operating conditions while at
the same time without creating any capacity restriction in the
column. A suitable support grid selection depends on the type of
catalyst as well as maximum design load. Our Screen Support Grids
are designed as very tiny catalysts can retain on the Screen and do
not drop from the slots. This equipment has better open area as can
translate fluid directly into superior process efficiency.
Our support grids are available in a variety of framing options and
designs, from one-piece construction to multiple sections. This
allows for easy on-site assembly, retrofitting and transporting
sections through existing manways. These self-supporting structures
have exceptional resistance to collapsing and buckling, even in
operations where screens must bear extremely high loads. Media
support grids fabricated with Wedge Wire are a good choice when
dealing with retaining media in vessels of all types.
Compared to wire mesh and perforated metal, Wedge Wire’s continuous slots have more open area. Their consistent slots are more durable and virtually non-clogging to reduce media abrasion.
| Wedge wire | width(mm):1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00 |
| Support rod | Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm |
| Slot size | 0.10 0.15 0.20 0.25 0.30.....6.00mm also achieved upon request. |
| Material | Stainless steel(304,316,316L etc.) |
| Length | up to 6m |
| Diameter | from 26mm to 1200mm |
| End connection | Plain beveled ends, flanged or threaded couplings. |
The advantage of wedge wire false bottom screen to others filter:
Continuous-slot design provides an increased open area
The continuous slot formed by V-shaped surface wires ensures a two-point contact between the particles and the slot to minimize clogging
Wide range of profile wires are available to suit most applications
High-precision slot sizes are available to meet your requirements
V-shaped surface wires allow for easy cleaning
Very low pressure drop
Additional supports are utilized to accommodate extreme load conditions
Low maintenance.
The details:
The Package And the delivery
|
|
