| Brand Name : | STD Filter |
| Model Number : | STD NWM-007 |
| Price : | USD1-10 / piece |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 10000 piece a week |
| Delivery Time : | 5-8 work days |

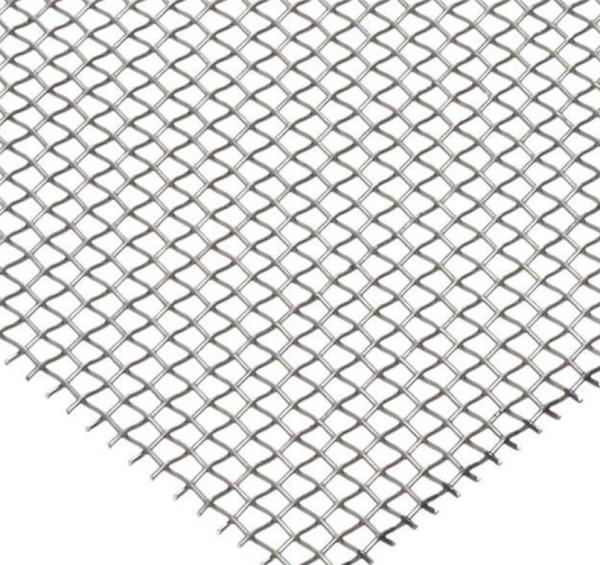

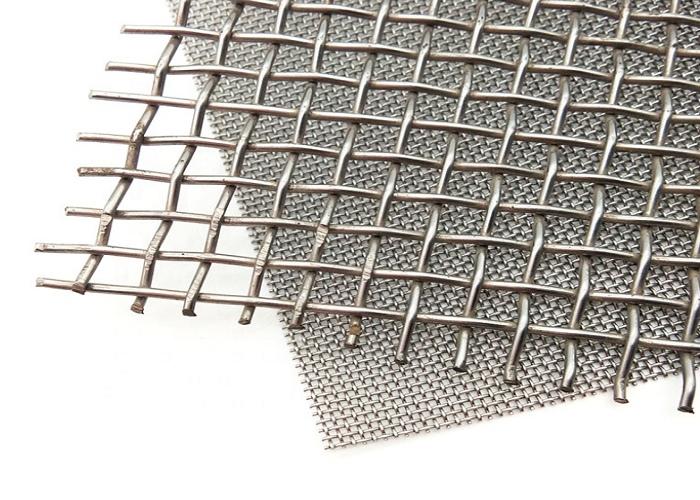

Nickel wire mesh structure firm long service life.
Nickel wire mesh Introduction:
Nickel stitched cable mesh is a type of filtration display mesh made out of nickel cable components N2, N4, N6, N8, and so forth. Typically the most popular nickel wire fine mesh substance is N4 and N6. The principle nickel content of N6 is much more than 99.5Per cent. N2 has highest nickel articles of more than 99.98Per cent. N8 has the cheapest nickel content of 99% min. Pure nickel wire mesh have superior deterioration resistance, acid resistance, primarily found in testing and mass media divorce of fuel and fluid under alkali enviromentally friendly situations.
Nickel wire mesh Material:
| Mesh count | Wire diameter(mm) | Aperture(mm) | Max width(m) |
| 10 | 0.60 | 1.94 | 1.60 |
| 20 | 0.40 | 0.87 | 1.60 |
| 30 | 0.30 | 0.55 | 1.60 |
| 40 | 0.23 | 0.40 | 1.60 |
| 50 | 0.20 | 0.31 | 1.60 |
| 60 | 0.15 | 0.27 | 1.60 |
| 70 | 0.12 | 0.24 | 1.60 |
| 80 | 0.13 | 0.19 | 1.60 |
| 90 | 0.12 | 0.16 | 1.60 |
| 100 | 0.10 | 0.15 | 1.60 |
| 120 | 0.09 | 0.12 | 1.60 |
| 150 | 0.063 | 0.11 | 1.60 |
| 180 | 0.053 | 0.01 | 1.60 |
| 200 | 0.053 | 0.07 | 1.60 |
| 250 | 0.040 | 0.063 | 1.60 |
| 300 | 0.040 | 0.044 | 1.60 |
| 325 | 0.035 | 0.043 | 1.60 |
| 350 | 0.030 | 0.042 | 1.60 |
| 400 | 0.030 | 0.033 | 1.60 |
Nickel wire mesh Features:
Corrosion resistant
Acid alkali-resistance
Mainly used in strong acid,strong alkali environment under the condition of screening,gas,liquid filter ation and other media separation.
Warp and weft threads have the same density per inch.
Nickel wire mesh Applications:
Oil industry
Chemical industry
Aerospace industry
Filtering
Grading
Separating
Packing:
|
|
