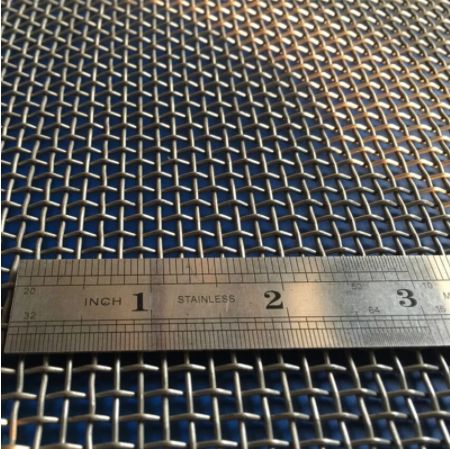

Titanium woven wire mesh is a kind of products with outstanding
corrosion resistance, low density and nontoxic performance.
Titanium Wire Mesh Introduction:
Titanium woven wire mesh is a sort of goods with exceptional
corrosion opposition, reduced occurrence and nontoxic
functionality. In the deterioration surroundings, the outer lining
of high purity titanium mesh will type an oxidation movie covering
to shield wire fine mesh from being corroded. The coating is
portable and inert, which contains strong effectiveness against the
rust. It provides superb corrosion resistant overall performance in
below atmosphere: Seawater, wet chlorine, chlorite and hypochlorite
answer, nitric acidity, chromic acid solution, steel chlorides and
organic and natural salts.
As a result of fantastic corrosion level of resistance, the
titanium stitched cable fine mesh is one of the alternative
materials of nickel-cost-free stainless cable mesh, light weight
aluminum cable fine mesh.
The titanium wire fine mesh has broadened wire fine mesh and
perforated wire mesh kinds, which can be used as different
software.
Titanium Wire Mesh Material:
| Item | Mesh (Wires/ in.) | Wire diameter (in.) | Width of opening (in.) |
| RTI-01 | 4 × 4 | 0.0320 | 0.2180 |
| RTI-02 | 4 × 4 | 0.0350 | 0.2150 |
| RTI-03 | 6 × 6 | 0.0320 | 0.1350 |
| RTI-04 | 7 × 7 | 0.0250 | 0.1180 |
| RTI-05 | 8 × 8 | 0.0320 | 0.0930 |
| RTI-06 | 9 × 9 | 0.0320 | 0.0790 |
| RTI-07 | 10 × 10 | 0.0350 | 0.0650 |
| RTI-08 | 10 × 10 | 0.0300 | 0.0700 |
| RTI-09 | 10 × 10 | 0.0250 | 0.0750 |
| RTI-10 | 12 × 12 | 0.0110 | 0.0723 |
| RTI-11 | 14 × 14 | 0.0160 | 0.0550 |
| RTI-12 | 16 × 16 | 0.0060 | 0.0565 |
| RTI-13 | 18 × 18 | 0.0100 | 0.0460 |
| RTI-14 | 18 × 18 | 0.0110 | 0.0445 |
| RTI-15 | 18 × 18 | 0.0160 | 0.0400 |
| RTI-16 | 20 × 20 | 0.0030 | 0.0470 |
| RTI-17 | 20 × 20 | 0.0200 | 0.0300 |
| RTI-18 | 20 × 20 TW | 0.0160 | 0.0340 |
| RTI-19 | 24 × 24 | 0.0100 | 0.0320 |
| RTI-20 | 24 × 24 | 0.0118 | 0.0299 |
| RTI-21 | 26 × 26 | 0.0100 | 0.0290 |
| RTI-22 | 30 × 30 | 0.0100 | 0.0233 |
| RTI-23 | 32 × 32 | 0.0100 | 0.0210 |
| RTI-24 | 35 × 35 | 0.0080 | 0.0206 |
| RTI-25 | 40 × 40 | 0.0050 | 0.0200 |
| RTI-26 | 40 × 40 | 0.0100 | 0.0150 |
| RTI-27 | 50 × 50 | 0.0090 | 0.0110 |
| RTI-28 | 50 × 50 TW | 0.0040 | 0.0160 |
| RTI-29 | 60 × 60 TW | 0.0090 | 0.0077 |
| RTI-30 | 90 × 90 | 0.0040 | 0.0071 |
| RTI-31 | 100 × 100 | 0.0020 | 0.0080 |
| RTI-32 | 120 × 120 TW | 0.0040 | 0.0043 |
| RTI-33 | 150 × 150 TW | 0.0027 | 0.0040 |
Titanium is very light, substantial durability, heating level of
resistance, deterioration amount of resistance, and several other
exceptional attributes.
Titanium fine mesh in corrosion-tolerant press atmosphere,
generating a dense, strong adhesion, sizeable inert oxide video on
the surface passivation, to safeguard the titanium fine mesh
substrate from deterioration, to accomplish robust anti-corrosive
result Especially in the surroundings of usage adhering to a lot
more fantastic corrosion amount of resistance, including: drinking
water, wet chlorine, chlorite and hypochlorite option, nitric acid
solution, chromic acid aluminum chloride and organic and natural
salts
Titanium Mesh lApplications:
Aerospace, shipbuilding, chemical machinery, great-temperature
vacuum gear, energy, desalination, health care and also other
areas.
