| Brand Name : | STD Filter |
| Model Number : | STD NWM-008 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days |
Flat-grain nickel mesh is the most common weaving method, mainly characterized by the same density of the warp and latitudinal filament diameter.

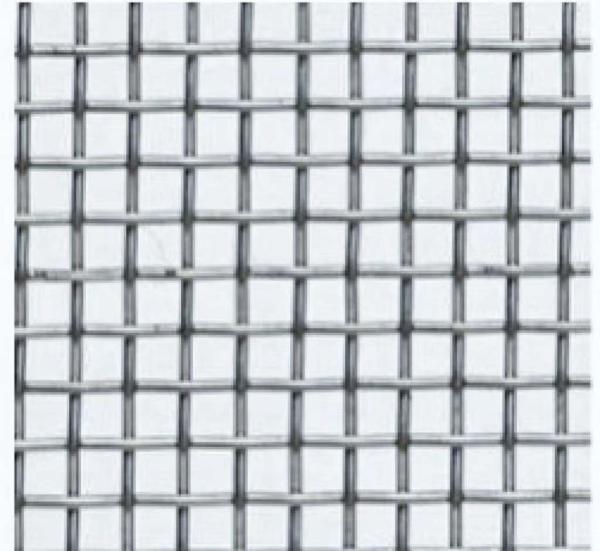

Flat-grain nickel mesh Introduction
Nickel wire woven mesh
Made of nickel silk warp and longitude cross weaving, the mesh is generally a square hole.
Number of entries: Item 1-200 entries
Nickel silk material: Ni4, Ni6, nickel chromium gold, nickel copper gold
Network width network length and special specifications can be set as required.
| Mesh count | Wire diameter(mm) | Aperture(mm) | Max width(m) |
| 10 | 0.60 | 1.94 | 1.60 |
| 20 | 0.40 | 0.87 | 1.60 |
| 30 | 0.30 | 0.55 | 1.60 |
| 40 | 0.23 | 0.40 | 1.60 |
| 50 | 0.20 | 0.31 | 1.60 |
| 60 | 0.15 | 0.27 | 1.60 |
| 70 | 0.12 | 0.24 | 1.60 |
| 80 | 0.13 | 0.19 | 1.60 |
| 90 | 0.12 | 0.16 | 1.60 |
| 100 | 0.10 | 0.15 | 1.60 |
| 120 | 0.09 | 0.12 | 1.60 |
| 150 | 0.063 | 0.11 | 1.60 |
| 180 | 0.053 | 0.01 | 1.60 |
| 200 | 0.053 | 0.07 | 1.60 |
| 250 | 0.040 | 0.063 | 1.60 |
| 300 | 0.040 | 0.044 | 1.60 |
Flat-grain nickel mesh Advantage:
Flat-grain nickel mesh Application
Battery industry.
Chemical industry.
Mechanical industry.
Petroleum.
Medicine.
Satellite and aerospace.
Electroplating industry.
Flat-grain nickel mesh Package and Delivery
|
|
