| Brand Name : | STD Filter |
| Model Number : | STD SBS-010 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days or customized time |
| Nominal diameter(in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) | Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) |
| 2-3/8” | 45 | 60.3 | 4 | 90 | |||||
| 2-7/8” | 58 | 73.0 | 4 | 90 | |||||
| 4-1/2” | 100 | 114.3 | 5 | 14 | 4-1/2” | 100 | 114.3 | 8 | 60 |
| 5-1/2” | 124 | 139.7 | 7 | 8 | 5-1/2” | 124 | 139.7 | 10 | 50 |
| 6-5/8” | 150 | 168.3 | 9 | 20 | 6-5/8” | 150 | 168.3 | 12 | 50 |
| 8-5/8” | 197 | 219.1 | 15 | 15 | 8-5/8” | 197 | 219.1 | 20 | 60 |
| 9-5/8” | 222 | 244.5 | 17 | 9 | 9-5/8” | 222 | 244.5 | 25 | 60 |
| 10-3/4” | 247 | 273.1 | 20 | 10 | 10-3/4” | 247 | 273.1 | 30 | 45 |
| 12-3/4” | 298 | 323.9 | 24 | 10 | 12-3/4” | 298 | 323.9 | 37 | 40 |
| 13-3/8” | 316 | 339.7 | 30 | 9 | |||||
| 16 | 378 | 406.4 | 34 | 9 | |||||
| 20 | 476 | 508.0 | 53 | 9 | |||||
| Applied for shallow well or general screen | Greater strength, larger filter area Applied for medium depth wells or deep wells | ||||||||
Characteristic:
Good dehydration effect, high screening efficiency, no blocking, stainless steel seam screen surface is more durable.
Sieve bend screen is generally installed before the power screen, in order to reduce the power screen area, it has simple structure, small footprint, good dehydration effect, easy maintenance, material is not easy to plug, can also be used with water cyclone.
The Way of Filter
The Advantages:
1.No need power to run it.
2.Maximazing work face.
3.Not easily to be blocked.
4.Less cost to maintance and run.
5.Environmental friendly.
Application:

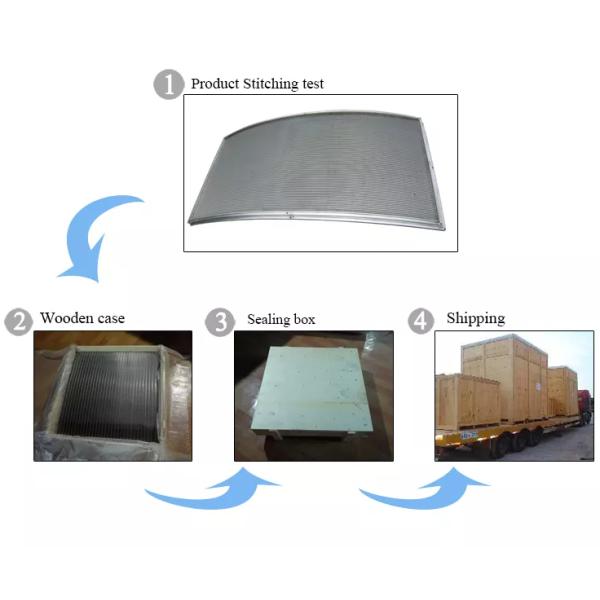

Packages
The delivery
