| Brand Name : | STD Filter |
| Model Number : | STD SBS-007 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days or customized time |

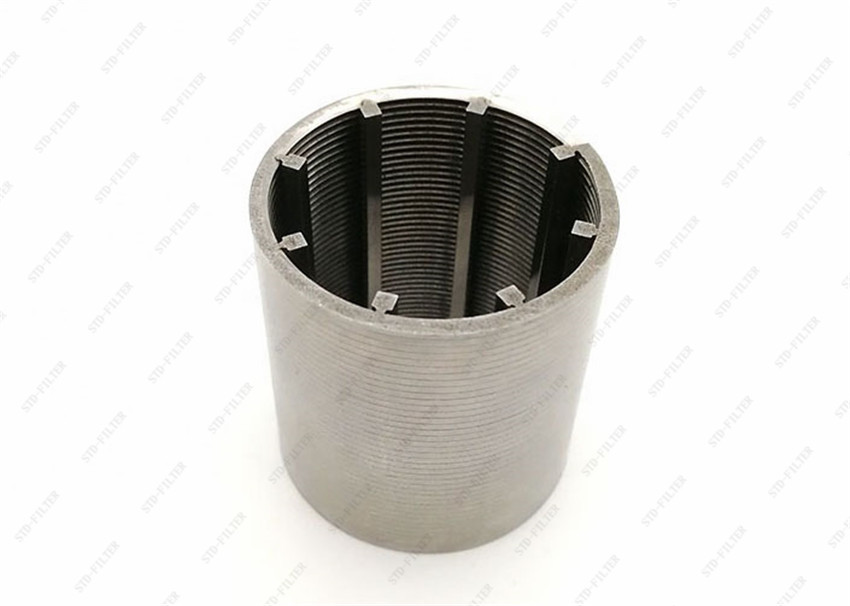

Wedge wire basket strainer has strong structure and long service life.
Introduction:
Basket elements other than standard perforated or mesh filter baskets are required for special processing applications. These filter baskets are ideal for our high capacity filters. Their rugged construction results in ease of maintenance and is ideal for CIP processes. Importantly, they meet the requirements of 3A slot sizes of 0.005 "or greater.
Wedge wire basket can be used for all wedge wire basket sanitary filters. They are manufactured as standard packages for incoming or incoming flows, or as shown above with reverse rolling filter elements for incoming and outgoing flows, or with reverse winding filter element styles. The style of unwinding filter element is an economical alternative to unwinding construction. It is also an alternative to smaller diameter elements that are not suitable for reverse rolling.
Wedge wire basket can be manufactured to meet a variety of process applications. Backwash, high viscosity and flow direction, and process changes can be accommodated. Available in our single filter and double filter arrangements. By changing the profile line and/or support bars, the fracture or collapse strength of the basket elements can be adjusted to meet the requirements of high pressure drop. As an experienced manufacturer of wedges, you can trust us to supply all your hygiene filter needs.
| Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) | Nominal Diameter (in) | ID (mm) | OD (mm) | Wt (Kg/m) | Collapse Strength (bar) |
| 2-3/8” | 45 | 60.3 | 4 | 90 | |||||
| 2-7/8” | 58 | 73.0 | 4 | 90 | |||||
| 4-1/2” | 100 | 114.3 | 5 | 14 | 4-1/2” | 100 | 114.3 | 8 | 60 |
| 5-1/2” | 124 | 139.7 | 7 | 8 | 5-1/2” | 124 | 139.7 | 10 | 50 |
| 6-5/8” | 150 | 168.3 | 9 | 20 | 6-5/8” | 150 | 168.3 | 12 | 50 |
| 8-5/8” | 197 | 219.1 | 15 | 15 | 8-5/8” | 197 | 219.1 | 20 | 60 |
| 9-5/8” | 222 | 244.5 | 17 | 9 | 9-5/8” | 222 | 244.5 | 25 | 60 |
| 10-3/4” | 247 | 273.1 | 20 | 10 | 10-3/4” | 247 | 273.1 | 30 | 45 |
| 12-3/4” | 298 | 323.9 | 24 | 10 | 12-3/4” | 298 | 323.9 | 37 | 40 |
| 13-3/8” | 316 | 339.7 | 30 | 9 | |||||
| 16 | 378 | 406.4 | 34 | 9 | |||||
| 20 | 476 | 508.0 | 53 | 9 | |||||
| Applied for shallow well or general screen | Greater strength, larger filter area Applied for medium depth wells or deep wells | ||||||||
Advantage
1. The application of wedge-shaped wire on the filter element makes the v-shaped opening formed between the gaps of the screen tube. Because of the innate advantages of the device can be operated than other forms of filtration products, water filtration is not only smooth, but also in terms of the work efficiency of the wedge wire filter pipe flow is bridge filter pipe 3 times, is slit filter pipe 9 times!
2. Structural advantages of wrapped wire tubes. According to the actual needs of the design of the longitudinal support rod arrangement, and the screen tube continuity gap form, so that the product has more
High compression resistance. T - shaped winding wire and all longitudinal support rod are connected by electric welding combination, strong, longer working life cycle, low overall cost.
3. Filter pipe gap range is large. Any screen gap size between 0.02mm and 60mm can be made according to actual requirements to meet different application conditions.
Other Applications:
1.Environmental protection
2.water/liquid filtration
3.air/liquid filtration
4.Drinking water pre-filter
5.mining
Package and Delivery:
Package is professional export and wooden box.If you have any special demands.we can negotiate.
The delivery is door to door,or we can negotiate.
