SUS 316 Good Flat Panel Surface V-Shape Wedge Wire Strainer For Gold Ore And Mining

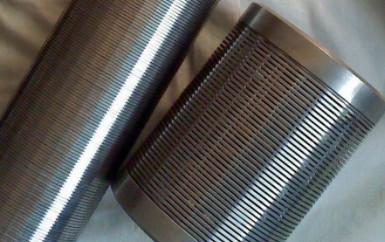

Wedge wire filter core is welded by wedge-shaped winding strip and reinforcement strip. A continuous gap is formed on the surface of the filter element. From the cross section, the gap presents a narrow outside and wide inside structure. Filtration direction from outside to inside.

The Benifits of V-shape Wedge Slot Wire Strainer

1, can withstand the pressure. Unique self-supporting structure allows it to withstand very high pressure, suitable for high pressure filtration processes and equipment.

2, high filtration accuracy. The gap is 10 microns and the error is 5 microns. Fully meet the current industry of filtration accuracy requirements.

3, not easy to plug, easy to backwash. Narrow outside and wide inside gap structure makes the filter element with "self-cleaning" function, impurities will not be stuck, backwashing process is more thorough, cleaning effect is ideal.

4. Small seepage velocity. Compared with other filter elements, the flow rate of liquid through the wedge wire filter element is smaller, the pressure drop is small, more stable. Especially suitable for high viscosity liquid filtration.

5, filter element roundness is high, no edges and corners on the surface. Compared with the angular filter element, the pure round filter element can not only improve the filter area, but also can make the filter element compression more uniform, so that the high pressure environment stability. Pure round filter element is more suitable for filter element external decontrination device filter.

6. Various materials. Can choose different materials according to the specific use environment, has reached the requirements of wear resistance, high temperature resistance, corrosion resistance and so on. The commonly used materials are stainless steel 304, 316L, 904L and Hastelloy, etc. Customers can also specify the material.
