| Brand Name : | STD Filter |
| Model Number : | STD NWM-008 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days |

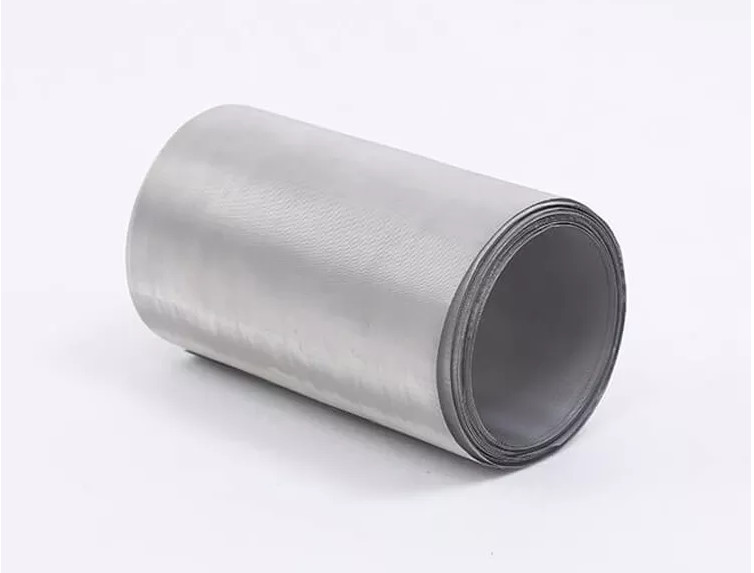

Nickel mesh Introduction
It is acid and alkali resisting.The products are used in electric apparatus and chemical machinery.
Available models: wire Dia: 0.05mm--8.0mm, mesh: 20mesh--200mesh.
| Mesh count | Wire diameter(mm) | Aperture(mm) | Max width(m) |
| 10 | 0.60 | 1.94 | 1.60 |
| 20 | 0.40 | 0.87 | 1.60 |
| 30 | 0.30 | 0.55 | 1.60 |
| 40 | 0.23 | 0.40 | 1.60 |
| 50 | 0.20 | 0.31 | 1.60 |
| 60 | 0.15 | 0.27 | 1.60 |
| 70 | 0.12 | 0.24 | 1.60 |
| 80 | 0.13 | 0.19 | 1.60 |
| 90 | 0.12 | 0.16 | 1.60 |
| 100 | 0.10 | 0.15 | 1.60 |
| 120 | 0.09 | 0.12 | 1.60 |
| 150 | 0.063 | 0.11 | 1.60 |
| 180 | 0.053 | 0.01 | 1.60 |
| 200 | 0.053 | 0.07 | 1.60 |
| 250 | 0.040 | 0.063 | 1.60 |
| 300 | 0.040 | 0.044 | 1.60 |
Nickel mesh Advantage:
1. High electrical conductivity
2. Good electrocatalytic activity
3. Adequate selectivity
4. Long-term mechanical stability
5. Corrosion resistance
6. Dimensional stability
7. Prolong chemical stability
8. Availability and economical
9. Health safety
10. Uninterrupted flow of electrolyte liquid
Nickel mesh Application
Chemical Filtration, Liquid separation, Sewage Treatment, Electrochemistry,Battery electrodes,college experiments,
Nickel mesh Package and Delivery
1.There are waterproof paper and carton pipe inside for support.
2.And then use plastic wooden bags /wooden case /wooden pallets
outside.
3.Also can be customized.
|
|
