| Brand Name : | STD Filter |
| Model Number : | STD NWM-007 |
| Price : | USD1-10 / piece |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 10000 piece a week |
| Delivery Time : | 5-8 work days |

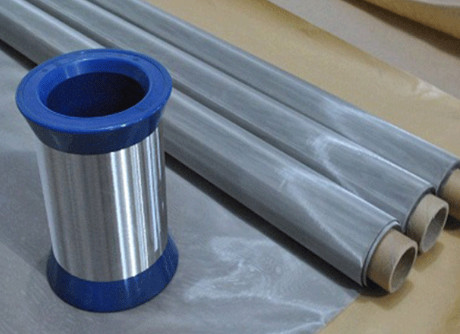

Nickel wire mesh Introduction:
The nickel is a sliver color metal. According to the purity, the nickel has different material types, such as the N2, N4, N6 and N8. Pure Nickel wire mesh is manufactured from nickel wire with high purity not less than 99%. Nickel wire mesh features excellent corrosion, acid and alkali resistance, high electrical conductivity, thermal conductivity and ductility, heat resistance, wear resistance. Nickel wire mesh or low-alloy nickel wire mesh is useful in chemical processing because of its resistance to various chemicals including acid, alkali. It is also useful in the electronics due to its high electrical conductivity. The Nickel wire can be also used in the heat exchange due to its thermal conductivity and ductility.
Nickel wire mesh description:
Nickel wire mesh for electrode is produced by weaving nickel wires into diverse styles. It is suitable for use in alkaline fuel cells. Nickel has good mechanical characteristics and low stress while offering excellent corrosion resistance and strength properties. It offers much better performance than stainless steel.
| Mesh count | Wire diameter(mm) | Aperture(mm) | Max width(m) |
| 10 | 0.60 | 1.94 | 1.60 |
| 20 | 0.40 | 0.87 | 1.60 |
| 30 | 0.30 | 0.55 | 1.60 |
| 40 | 0.23 | 0.40 | 1.60 |
| 50 | 0.20 | 0.31 | 1.60 |
| 60 | 0.15 | 0.27 | 1.60 |
| 70 | 0.12 | 0.24 | 1.60 |
| 80 | 0.13 | 0.19 | 1.60 |
| 90 | 0.12 | 0.16 | 1.60 |
| 100 | 0.10 | 0.15 | 1.60 |
| 120 | 0.09 | 0.12 | 1.60 |
| 150 | 0.063 | 0.11 | 1.60 |
| 180 | 0.053 | 0.01 | 1.60 |
| 200 | 0.053 | 0.07 | 1.60 |
| 250 | 0.040 | 0.063 | 1.60 |
| 300 | 0.040 | 0.044 | 1.60 |
| 325 | 0.035 | 0.043 | 1.60 |
| 350 | 0.030 | 0.042 | 1.60 |
| 400 | 0.030 | 0.033 | 1.60 |
Nickel wire mesh Features:
1.Good surface
2.Good electricity conductivity
3.Strong corrosion resistance
4.Prolonged service time
5.Ultra-tight tolerances
6.The smoothness of aperture walls
7.Aperture stability
Nickel wire mesh Applications:
1. For vacuum coating;
2. For making valves grid, inner components of vacuum valves;
3. For making lead, supporting wire;
4. For battery production;
5. For chemical, mine, hydrogen making, acid making and basic industry.
Packing:
inner kraft, outside plastic cloth, put into wooden pallet or case
|
|
