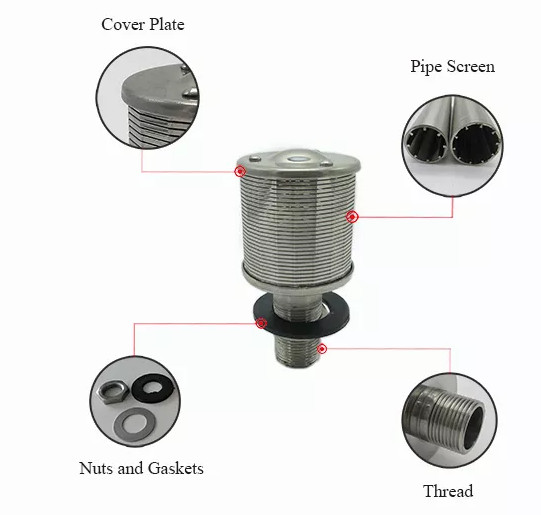

304 316L Wedge Wire Screen Sand Filter Nozzle Water Strainers Profile Wire Screen Nozzle
Stainless steel wedge wire water filter nozzle strainer is suitable for water treatment, all kinds of matching ion exchange columns and activated carbon filters, it can also be used in the drainage system of fast filter, it can effectively wash out the sludge in the filter and ensure the normal operation of the water quality and quantity of the filter.
| Type | Slot | Dimension | Flow Rating | ||||
| D(mm) | H(MM) | L(MM) | Thread | Fittings | |||
|
|
|
|
| M,NPT, G, PT(BSPT),Z,BSP, request | SS Gasket, |
|
| STD-1.0 | 0.25 | 53 | 45 | 90/request | 1.0 | ||
| STD-1.5 | 0.25 | 57 | 45 | 90/request | 1.5 | ||
| STD-2.0 | 0.25 | 57 | 55 | 100/request | 2.0 | ||
| STD-2.5 | 0.25 | 70 | 55 | 100/request | 2.5 | ||
| STD-3.0 | 0.25 | 70 | 70 | 120/request | 3.0 | ||
| Note | * All the above size are the normal size. Customized size is
possible. | ||||||
Advantages :
1. Material: 304, 304L, 316, 316L, etc as your requirements.
2. Continuous slot design provides an increased open area for better filtration
3. Standard nozzles and the nozzle with Fittings can be suited for different equipment
4. Can be customized size as your requirement
5. The wedge wire screen is highly resistant to plugging.
6.Non-clogging.
7. High filtering performance.
8.Corrosion and rust resistance.
9.High temperature resistance.
10. Economical and Easy to install and replacement.
Application:
This filter nozzle can be used at the filter equipment for the filtration of water, petrol resin and other medium. It can be also used in water treatment, water soft, conversion of sea water into fresh water, the filter of food chemistry and other filter industry.
