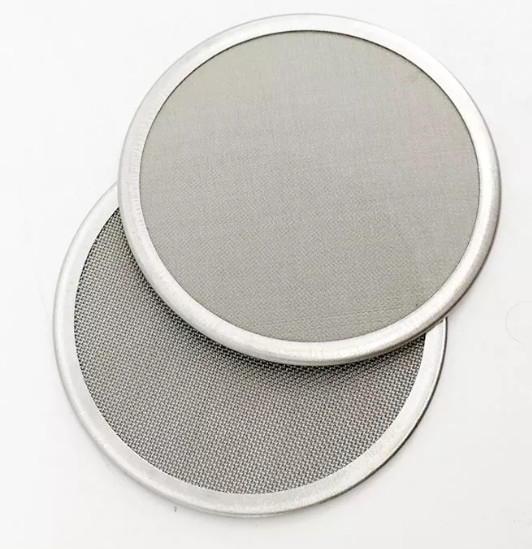

304 316 Stainless Steel 20-200 Micron Wire Mesh Round Filter Disc
The Description
Sintered powder filter disc is made of stainless steel powder. They can be made into tube type and plate type. Because of the good permeability, filter fitness and high stock utilization.
Stainless steel sintered metal filter disc is widely used for
filtration of polymer film, fiber, corrosive liquid, gases,
catalyst recovery, steam processing and gas-liquid sparging in
industries including pharmaceutical, chemical, plastic,
metallurgic, food and beverage, etc.
| Plain dutch weave wire mesh specifications | ||||
| Item | Mesh | Wire diameter(Warp x Weft) | Hole size/Micron | KGS/M2 |
| 32# | 8 x 62 | 0.63mm x 0.45mm | 300 | 5.42 |
| 40# | 10 x 79 | 0.50mm x 0.355mm | 250 | 3.16 |
| 48# | 12 x 64 | 0.58mm x 0.40mm | 280 | 2.9 |
| 76# | 19 x 140 | 0.315mm x 0.20mm | 140 | 1.88 |
| 80# | 20 x 300 | 0.35mm x 0.20mm | - | 3.6 |
| 95# | 24 x 110 | 0.355mm x 0.25mm | 120 | 2.45 |
| 100# | 25 x 140 | 0.28mm x 0.20mm | 100 | 1.95 |
| 120# | 30 x 150 | 0.25mm x 0.18mm | 80 | 1.68 |
| 160# | 40 x 200 | 0.20mm x 0.14mm | 60 | 1.40 |
| 180# | 45 x 250 | 0.16mm x 0.112mm | 56 | 1.09 |
| 200# | 50 x 250 | 0.14mm x 0.11mm | 53 | 1.04 |
| 240# | 65 x 330 | 0.11mm x 0.08mm | 36 | 0.71 |
| 280#(1) | 70 x 350 | 0.11mm x 0.08mm | 35 | 0.72 |
| 280#(2) | 70 x 385 | 0.11mm x 0.07mm | 32 | 0.75 |
| 300# | 78 x 700 | 0.11mm x 0.08mm | 30 | 1.39 |
| 315#(1) | 80 x 400 | 0.10mm x 0.065mm | 40 | 0.62 |
| 315#(2) | 80 x 600 | 0.10mm x 0.06mm | - | - |
| 315#(3) | 80 x 800 | 0.15mm x 0.04mm | - | - |
| 320# | 81 x 780 | 0.10mm x 0.07mm | 30 | 1.22 |
| 354# | 90 x 550 | 0.12mm x 0.05 | - | - |
The Feature
1.Physical properties: high tensile force, high dirt holding
capacity, high strength, high pressure resistance, accurate
filtration rating, abrasion resistance, good wear resistance, high
temperature resistance.
2.Chemical properties: acid, alkali and corrosion resistance.
3.Process properties: uniform controlled porosity, long service
life, precision punched burr-free, compatible with most
fluids,weldable, easy loading and unloading, cleanable and reusable
