20 100 Micron Stainless Steel Wire Mesh Round Mesh Metal Filter Multi-Layer Mesh Filter Screen Filter Disc

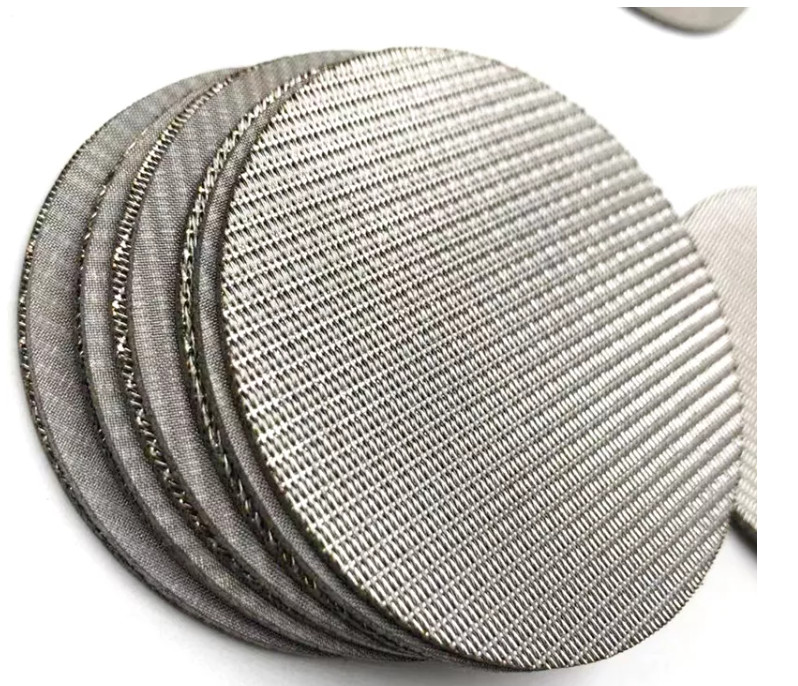

Description of stainless steel filter disc
Filter disc is processed by stainless steel woven wire mesh, longcrimp wire mesh, sintered mesh, etc. Due to its corrosion resistance and mechanical strength, it is mainly used to remove unwanted impurities from fluid, gas or solid. Filter discs are offered in different materials, sizes as well as custom designs which could meet your different filtration demands. The discs find their applications in the absorption, evaporation and filtration process in the industries such as petroleum, chemical, metallurgy, food and beverage, medicine and automobiles. All filter sheets are also available in lenticular module format.
Filteration Class | Filtering Rating (um) | Pore Size Max. (um) | Permeability 10-12m² | Breathability m3/h.m2.KPa | Thickness (mm) | Compression Strength MPa/ cm² |
| S9 | 0.2 | 2.5 | 1 | 3 | 3.0 | |
| S8 | 0.5 | 4 | 3 | 3 | 3.0 | |
| S7 | 1.0 | 6 | 5 | 3 | 3.0 | |
| S6 | 2.5 | 10 | 0.09 | 10 | 3 | 3.0 |
| S5 | 5 | 15 | 0.23 | 40 | 3 | 3.0 |
| 8 | 20 | 0.91 | 80 | 3 | 3.0 | |
| S4 | 10 | 30 | 1.81 | 160 | 3 | 3.0 |
| S3 | 30 | 60 | 3.82 | 350 | 3 | 3.0 |
| 35 | 80 | 7.29 | 500 | 3 | 3.0 | |
| S2 | 40 | 100 | 9.43 | 700 | 3 | 3.0 |
| S1 | 65 | 160 | 15.1 | 1000 | 3 | 3.0 |
Features of stainless steel filter disc
High tensile strength,Corrosion resistant,Acid and alkali resistant,Wear resistant,Accurate filter precision,High dirt holdingcapacity,
Stable filtering performance,Wide range of suitable environment,Reusable,Long service life
Application for stainless steel filter disc
water filtration Oil &Fuel filtration extruder screens suction line strainers pressure line filters filters for polyester fibre production
