| Brand Name : | STD Filter |
| Model Number : | STD WWF003 |
| Certification : | CE，ISO9001 |
| Price : | $50-500 /pcs |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 1 pcs per day, |
| Delivery Time : | 7 days or customized time |
304 316 Stainless Steel Easy Installation Wedge Vibrating Mesh Filter Element
Introduction:

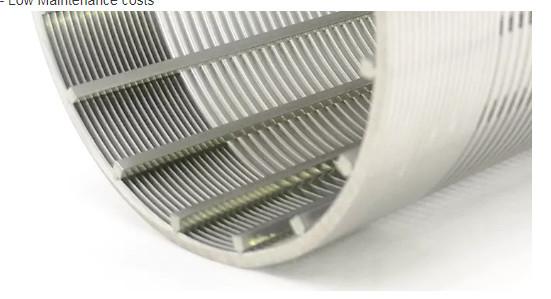

Wedge wire is the filter media which are made from shaped wire. The profile wires are accurately aligned and then welded to the support rods mostly by automatic resistance welding. Both the profile and the support wires can be with certain wedge shape or other section shape such as water drop , circle, or keystone. Wedge wire mainly shows in two forms: slotted tubes (cylindrical filter element) and flat screen (sieve).
| SIZE (INCH) | O.D (MM) | SLOT (INCH) | LENGTH (M) | COLLAPSE STRENGTH (PSI) | TENSILE WEIGHT (TON) | WRAP(thick*deep) (MM) | RODS (MM) |
| 4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8MM/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8MM/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8MM/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8MM/50 |
The advantage
1.Strong construction, high strength
2.Excellent media retention
3.Superb backwash ability
4.Less possibilty of clogging
5.Long service life
6.Low Maintenance costs
Application
1. Metallurgy
2. Railway Internal combustion engine and Generators
3. Marine Industry: Backwashing filtration unit.
4. Mechanical Processing Equipment
5.Petrochemical
6.Textile
7. Electronic and Pharmaceutical
8.Thermal power and Nuclear power
9.Car engine and Construction machinery
The package and The Delivery:
