50 Micron Stainless Steel Wedge Wire Filter Element For Mechanically Cleaned Filter
Introduction:

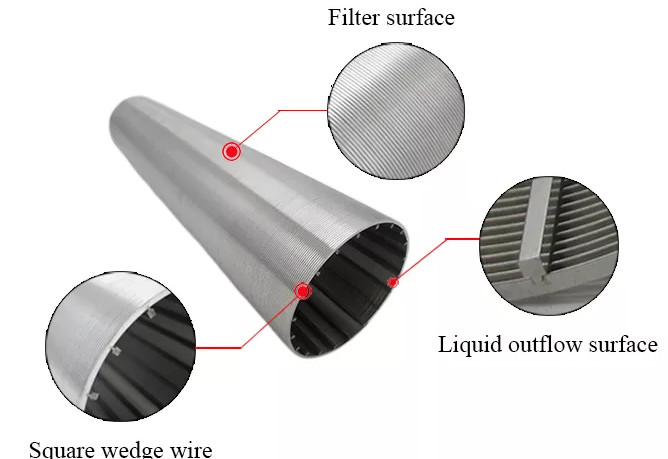

Welded 304 316 Stainless Steel Wedge Wire Screen Filter Element. V-shaped wire filter cartridge. Wedge wire screens are consists of surface profiles usually V-shaped, that are resistance welded onto support profiles. Wedge wire screens are either flow-out-to-in or flow-in-to-out. Wedge wire Screen filters are ideal for many challenging filtration applications.
The smooth surface of the filter element is the filter surface, and the gap is a strip, which belongs to the surface filter form.As the best filter element for various forms of automatic filters such as automatic backwash, scraper self-cleaning, scraper self-cleaning, suction self-cleaning filters.
| SIZE (INCH) | O.D (MM) | SLOT (INCH) | LENGTH (M) | COLLAPSE STRENGTH (PSI) | TENSILE WEIGHT (TON) | WRAP(thick*deep) (MM) | RODS (MM) |
| 4 | 117 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8MM/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8MM/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8MM/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8MM/48 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8MM/50 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8MM/50 |
The Features:
1. Can backwash, simple operation
2. Can be repeatedly used, long life
3. Trapezoidal wire continuous winding in a circular arrangement of
the support wire to form a continuous high density uniform gap, to
ensure the screen opening area and no obstruction, and to avoid the
accumulation of sediment high density.
Application
Widely used in water treatment of electric well, natural gas well, well, chemical industry, mining, paper making, environmental protection, metallurgy, foodstuff, sand control and decorative light industry.
