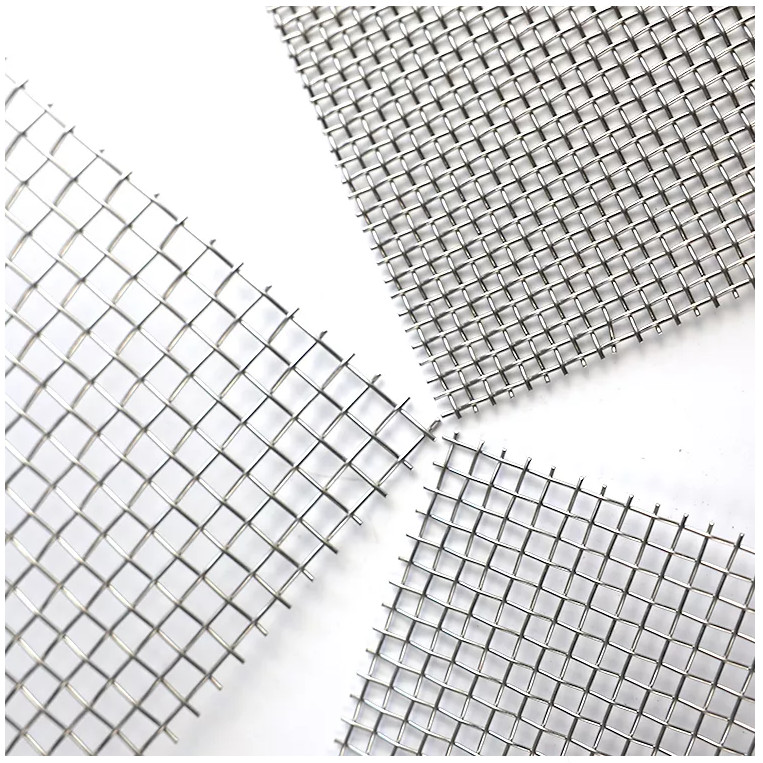

Decorative Metal Mesh Resistance Acid Architectural Woven Wire Mesh Panel

Product Categories

Hebei Standard Filter Equipment Co.,Ltd

Contact Now

Decorative Metal Mesh Resistance Acid Architectural Woven Wire Mesh Panel

Ask Lasest Price
Brand Name :	STD
Model Number :	STD-WWM-007
Certification :	FDA ,CE，ISO9001
Price :	To be negotiated
Payment Terms :	L/C, T/T, Western Union,
Supply Ability :	200 pieces per day
Delivery Time :	5-8word days

Add to Cart

Product Details
Company Profile

Decorative Metal Mesh Resistance Acid Architectural Woven Wire Mesh Panel

Decorative Metal Mesh Resistance Acid Architectural Woven Wire Mesh Panel

product description:

Material: Stainless steel wire mesh 202/304/310/316/316L /430 copper ,brass ,phosphor-bronze ,and special alloys ,nickel wire mesh ,titanium wire mesh ,monel wire mesh ,molybdenum wire mesh ,tungsten wire mesh ,zirconium wire mesh ,tantalum wire mesh ,inconel wire mesh ,nichrome wire mesh .

Decorative Metal Mesh Resistance Acid Architectural Woven Wire Mesh Panel

wire cloth specification
Mesh/inch	Wire diameter			Opening (mm)
Mesh/inch	SWG	mm	Inch	Opening (mm)
2	15	1.80	0.071	10.90
2	16	1.60	0.063	11.10
3	16	1.60	0.063	6.866
4	16	1.60	0.063	4.75
4	18	1.20	0.047	5.15
4	20	0.91	0.036	5.44
4	22	0.711	0.028	5.64
5	20	0.91	0.036	4.17
6	21	0.80	0.031	3.433
6	22	0.711	0.028	3.522
8	22	0.711	0.028	2.46
8	23	0.610	0.025	2.565
8	24	0.511	0.022	2.616
8	26	0.457	0.018	2.7
10	23	0.610	0.025	1.91
10	24	0.511	0.022	1.98
10	25	0.508	0.020	2.032
10	27	0.417	0.016	2.1
12	24	0.511	0.022	1.52
12	26	0.457	0.018	1.66
14	25	0.508	0.020	1.30
14	26	0.457	0.018	1.357
14	27	0.417	0.016	1.397
16	29	0.345	0.013	1.243
16	30	0.315	0.012	1.27
18	26	0.457	0.018	0.98
18	30	0.315	0.012	1.096
18	31	0.295	0.010	1.16
20	27	0.417	0.016	0.86
20	30	0.315	0.012	0.955
20	31	0.295	0.010	1.02
20	32	0.274	0.009	0.88
22	30	0.315	0.012	0.840
22	32	0.274	0.009	0.88
24	28	0.35	0.014	0.71
24	30	0.315	0.012	0.743
24	33	0.254	0.008	0.8
26	31	0.295	0.010	0.682
28	31	0.295	0.010	0.612
30	29	0.345	0.013	0.52
30	32	0.274	0.009	0.573
30	33	0.254	0.008	0.64
30	34	0.234	0.007	0.613
32	33	0.254	0.008	0.540
34	34	0.234	0.007	0.513
36	34	0.234	0.007	0.472
38	35	0.213	0.005	0.455
40	31	0.295	0.010	0.38
40	36	0.193	0.008	0.442
40	38	0.152	0.0060	0.485
42	36	0.193	0.0076	0.412
44	37	0.173	0.0068	0.404
46	37	0.173	0.0068	0.379
48	37	0.173	0.0068	0.356
50	32	0.229	0.009	0.28
50	34	0.234	0.007	0.32
50	37	0.173	0.0068	0.335
50	39	0.132	0.0052	0.378
60 × 50	36	0.193	0.0076	-
60 × 50	37	0.173	0.0068	-
60	33	0.191	0.0075	0.23
60	37	0.173	0.0068	0.250
60	40	0.122	0.0048	0.301
60	42	0.10	0.0040	0.32
70	39	0.132	0.0052	0.231
70	41	0.112	0.0044	0.251
80	35	0.213	0.005	0.18
80	36	0.193	0.008	0.22
80	40	0.122	0.0048	0.196
80	42	0.102	0.004	0.216
90	41	0.112	0.0044	0.170
90	43	0.091	0.0036	0.191
100	36	0.193	0.008	0.15
100	42	0.102	0.004	0.152
100	43	0.091	0.0036	0.164
100	46	0.061	0.0024	0.198
120 × 108	43	0.091	0.0036	-
120	44	0.081	0.0032	0.131
120	45	0.071	0.0028	0.14
140	45	0.071	0.0028	0.11
140	46	0.061	0.0024	0.120
145	46	0.061	0.0024	0.1168
150	46	0.061	0.0024	0.108
160	46	0.061	0.0024	0.098
180	46	0.061	0.0024	0.081
180	47	0.051	0.002	0.090
200	47	0.051	0.002	0.076

Decorative Metal Mesh Resistance Acid Architectural Woven Wire Mesh Panel

The feature

Excellent Resistance Against Acid, Alkali, Heat and Corrosion Wear-resisting

Decorative Metal Mesh Resistance Acid Architectural Woven Wire Mesh Panel

The Application

Construction, fence, floor heating mesh, stone cage, animal cage, poultry cage, etc.

The Package and Delivery

Decorative Metal Mesh Resistance Acid Architectural Woven Wire Mesh Panel
